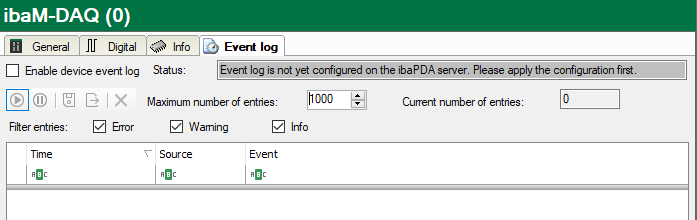

ibaM-DAQ - Event log tab

In the Event log tab, the status changes of the ibaM-DAQ device are documented in a list.

The following settings and operation modes are available:

Enable device event log

Here, you enable the event log for the device. You have to enable the event log separately for each individual device.

Status

The status of the connection between ibaPDA and ibaM-DAQ for reading the events is displayed here.

Maximum number of entries

Here you can set the maximum number of saved entries (100 - 100,000).

Current number of entries

The currently saved number of entries.

Operating elements

	When pressing the button, the list of events is automatically updated
	The automatic update is paused
	Continuously save messages in a file
	Export visible entries to a text file
	Clear diagnostic buffer

The list of events can be filtered in a customized way. If you want to filter the events according to a type, just select one or more types above the list: error, warning, info.

For further filtering, enter the filter text you are searching for in the desired field in the top line. All events containing the entered search text, will be displayed.
