The ibaNet interfaces X8 and X9 are intended for use with dedicated ibaNet-E connections that can acquire data with a synchronization accuracy of up to 1 µs.
The two 1GbE interfaces are with switch function and support:
-
Autonegotiation (100/1000 Mbit, full duplex)
-
Auto-MDI(X)

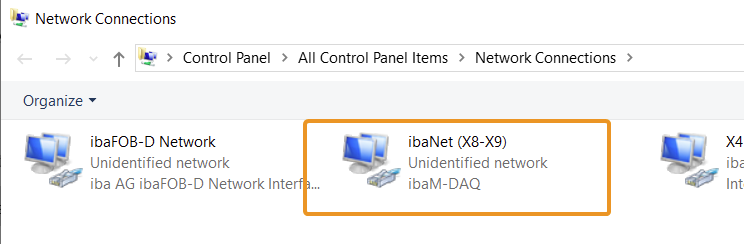

The ibaNet connections X8 and X9 also appear as network cards in the Windows network settings. Since X8 and X9 are designed with a switch function, they are only displayed as one network card in Windows:
This means it can also be used as a separate network card in Windows.
The IP setting for this network card depends on the ibaPDA version when performing a new installation:
|
ibaPDA |
Name of the network card |
Default IP settings |
||
|---|---|---|---|---|
|
IP address |
Subnet |
|||
|
< v8.13.0 |
IO bus |
fixed IP address |
169.254.255.2 |
255.255.255.252 |
|
from v8.13.0 |
ibaNet (X8-X9) |
DHCP |
- |
- |
After updating the ibaPDA version from < v8.13.0 to ≥ v8.13.0, the previously configured IP settings remain unchanged.
