Each ibaNet-E connection can be in different connection phases. The connection phases are displayed in different colors in the Connections tab.
|
ibaNet-E connection phase |
Color |
Description |
|---|---|---|
|

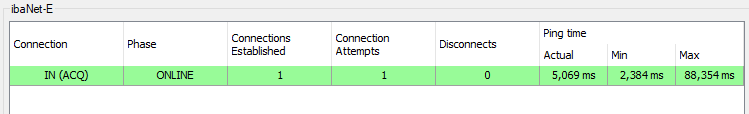

ONLINE |
green |
Connection; connection quality is OK |
|

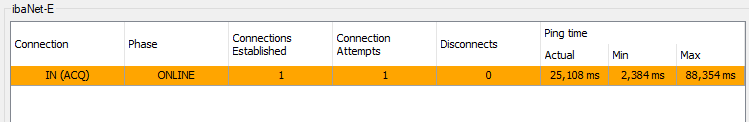

orange |
Connection; connection quality is not optimal |
|
|

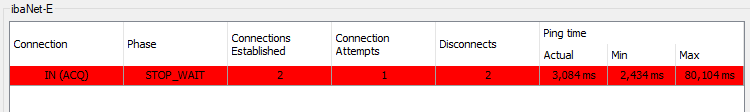

STOP_WAIT |
red |
Connection timeout; waiting for reinitialization |
|

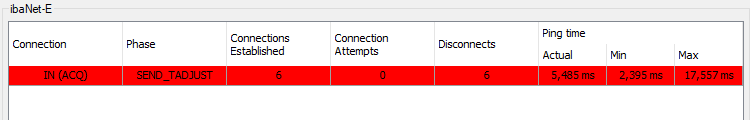

SEND_TADJUST |
red |
Connection setup; time synchronization |
|

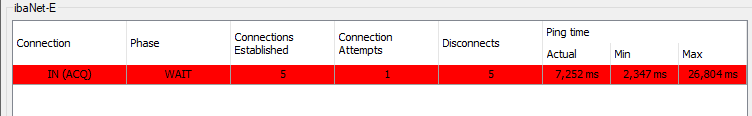

WAIT |
red |
Connection setup |
|

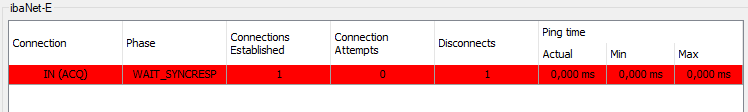

WAIT_SYNCRESP |
red |
Connection interruption |
Phase ONLINE
Phase STOP_WAIT
Phase SEND_TADJUST
Phase WAIT
Phase WAIT_SYNCRESP
