The available signals are automatically generated in the Analog and Digital tabs.

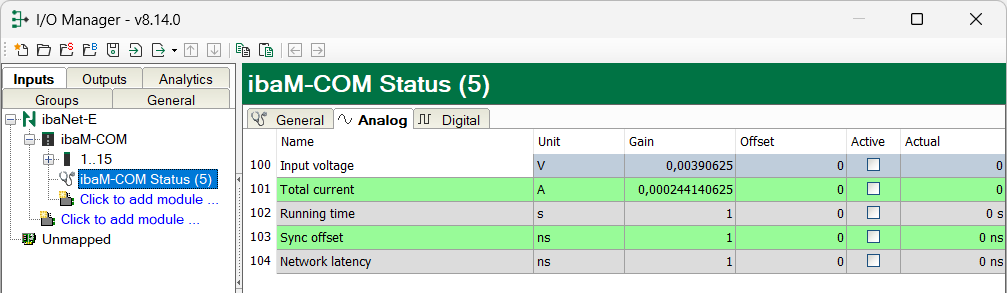

Analog status signals
|
Signal name |
Description |
|---|---|
|
Input voltage |
Internal supply voltage, deviates minimally from the supply voltage at the power supply connector due to the internal circuitry |
|
Total current |
The power consumption of the entire system including all modules (with an accuracy of ±10%) |
|
Running time |
The total running time of the IO bus since the last start in the format [d].hh:mm:ss |
|
Sync offset |
Absolute value of the time offset relative to the synchronization master, with a resolution of 32 ns and an update interval of 100 ms in the ibaNet-E HP network; otherwise, 1 s |
|
Network latency |
Network latency (resolution: 1 ns; update interval: 1 s) |

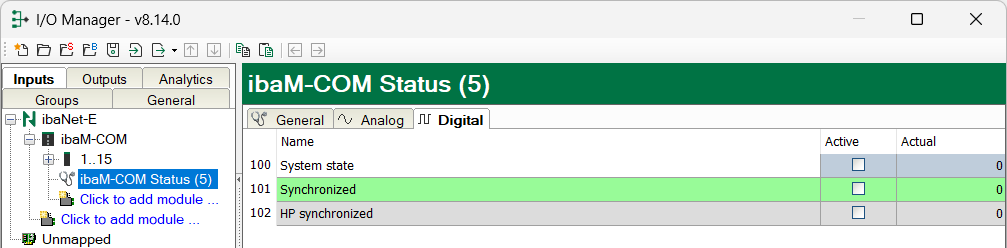

Digital status signals
|
Signal name |
Description |
|---|---|
|
Status |
The status of the entire system incl. all modules |
|
Synchronized |
The system is synchronized. |
|
HP synchronized |
The system is synchronized with ibaNet-E HP synchronization accuracy. |
