The available signals are automatically generated in the Analog and Digital tabs.

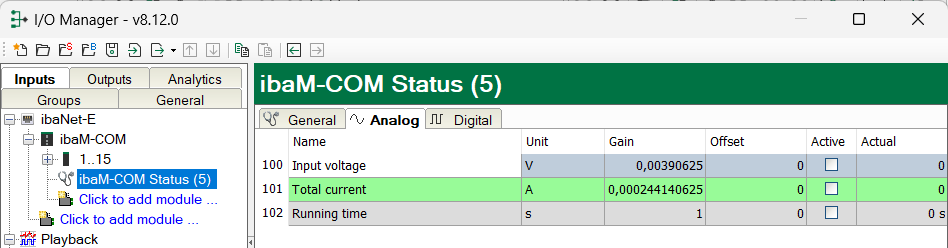

Analog status signals
|
Signal name |
Description |
|---|---|
|
Input voltage |
Internal supply voltage, deviates minimally from the supply voltage at the power supply connector due to the internal circuitry. |
|
Total current |
The power consumption of the entire system including all modules (with an accuracy of ±10%). |
|
Running time |
The total running time of the IO bus since the last start in the format [d].hh:mm:ss |

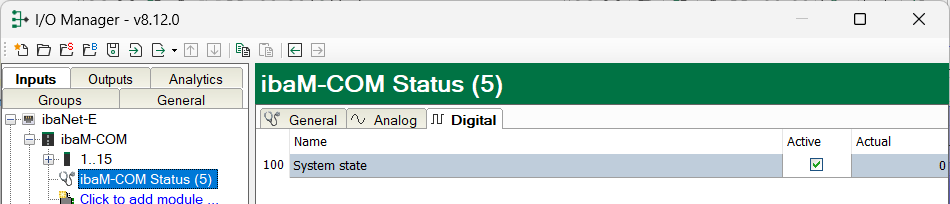

Digital status signals
|
Signal name |
Description |
|---|---|
|
Status |
The status of the entire system incl. all modules. |
