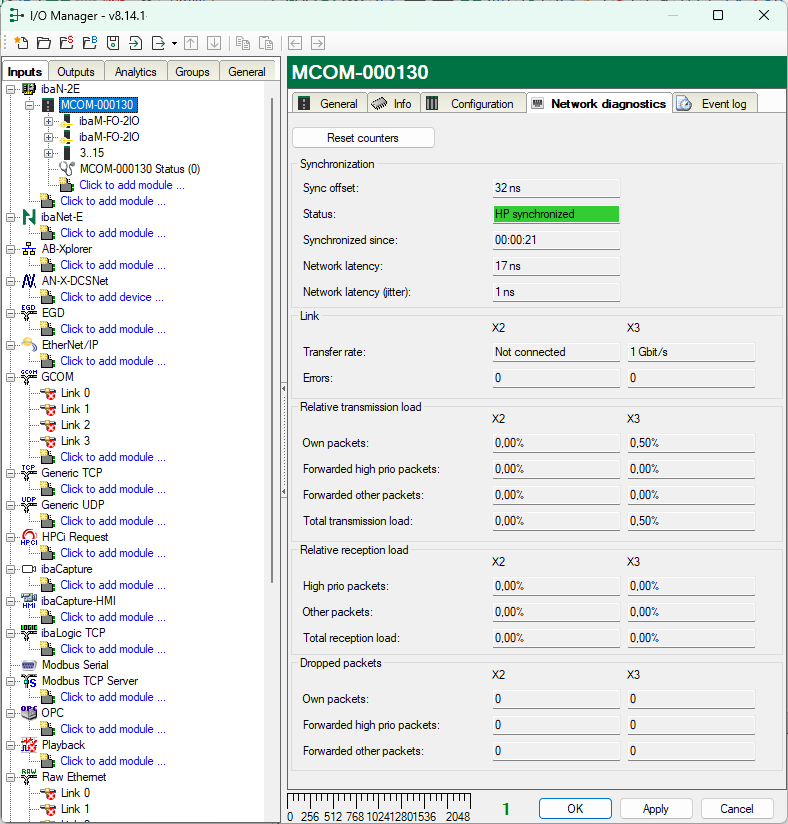

The Network diagnostics tab contains information about the network.

The <Reset counter> button resets the contents of the fields that contain a counter value.

Synchronization

The ibaM-COM system is synchronized with a master in the ibaNet-E network.

The following information is displayed:

• Sync offset: average absolute value of the time offset relative to the synchronization master, with a resolution of 32 ns.

• Synchronized since: synchronization duration in the format [d].hh:mm:ss

• Network latency: average network latency (resolution: 1 ns)

• Network latency (jitter): time deviation of the averaged delay time (resolution: 1 ns)

The following states can be displayed:

• Not synchronized: The system could not be synchronized.

• Synchronized: The system is synchronized.

• HP synchronized: The system is synchronized with an ibaNet-E HP synchronization accuracy.

Link

In the Link section, you will find information about the transmission speed of the individual interfaces and an error counter.

Relative transmission load

In the Relative transmission load section, you will find information on load in the transmission direction for each interface.

Relative reception load

In the Relative reception load section, you will find information on load in the receive direction for each interface.

Dropped packets

In the Dropped packets section, you will find information about the various dropped packets in case of overload.
