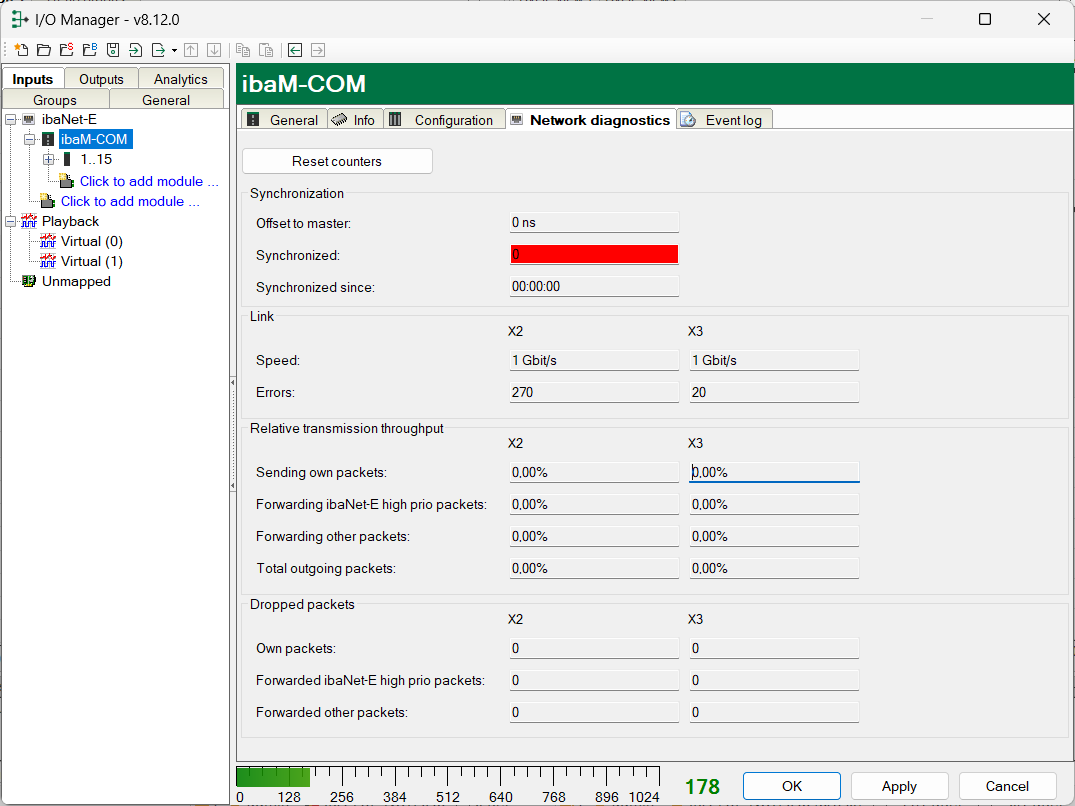

The Network diagnostics tab contains information about the network.

You can reset all counters using the <Reset counters> button.

Synchronization

In the Synchronization section, you will find information about synchronization in the network.

Link

In the Link section, you will find information about the transmission speed of the individual interfaces and an error counter.

Relative transmission throughput

In the Relative transmission throughput section, you will find information about the utilization of the individual interfaces.

Dropped packets

In the Dropped packets section, you will find information about the various lost packets.
