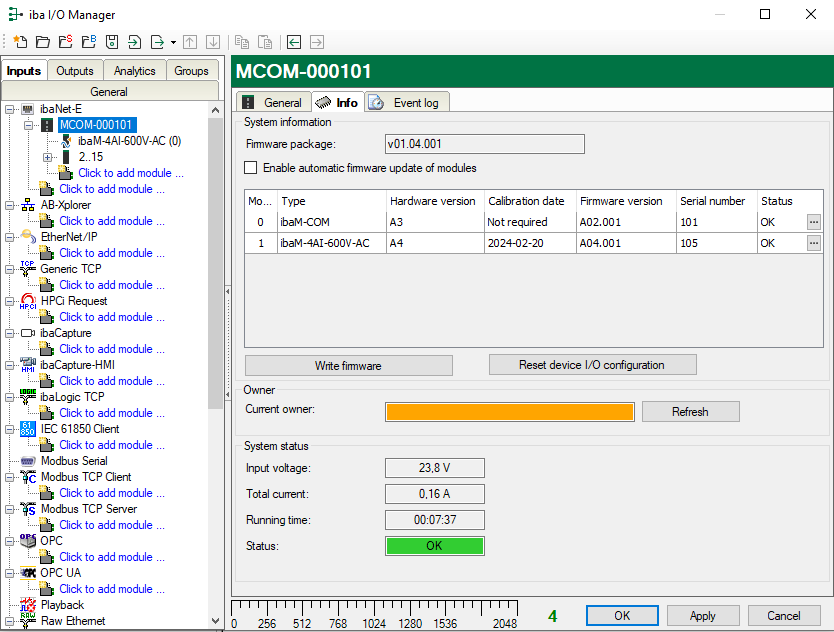

In the "System information" area you will find the firmware version and information on the individual modules connected to the IO bus.
Write firmware
With this button it is possible to perform firmware updates. Select the update file
ibaM_v[xx.yy.zzz].iba in the browser and start the update process by clicking <Open>.

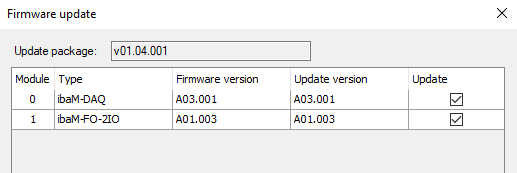

In the following dialog, you can specifically select which modules you want to update or whether you want to update the overall system.

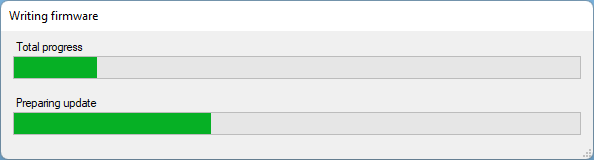

The update process is started by clicking on <OK>. The following dialog informs you about the progress of the update.
Note |
|
|---|---|
 |
This process may take several minutes and must not be interrupted. After an update, the IO bus will restart automatically. |
Reset device I/O configuration
You can use this button to reset the entire module configuration.
Owner
If a module configuration has already been carried out on the ibaM-COM device, the last owner of this module configuration is displayed here.
After delivery or resetting to factory settings, this field is empty.
The owner corresponds to the computer name on which ibaPDA is installed and from which this device was last configured.

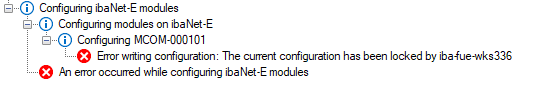

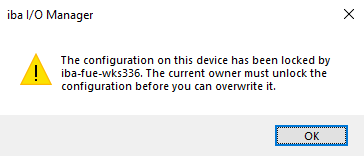

If a module configuration is locked or blocked and another ibaPDA system wants to access this module or use it for recording, the following messages appear depending on the situation:
The <Refresh> button can be used to call up the current owner of the module configuration from the device at any time.
Meaning of the colors:
|
Green |
The ibaPDA system that is currently accessing it is the owner.  The ibaPDA system system that is currently accessing it is the owner and has locked the module configuration.  |
|
Orange |
Another ibaPDA system is the owner, but has not locked the module configuration.  No owner is displayed (on delivery or reset to factory settings).  |
|
Red |
Another ibaPDA system is the owner and has locked the module configuration.  |
The following information is displayed in the "System status" area:
Input voltage
Internal supply voltage, deviates minimally from the supply voltage at the power supply connector due to the internal circuitry.
Total current
The power consumption of the entire system including all modules (with an accuracy of ±10 %).
Running time
The total running time of the IO bus since the last start in the format [d].hh:mm:ss
Status
The status of the entire system incl. all modules.
