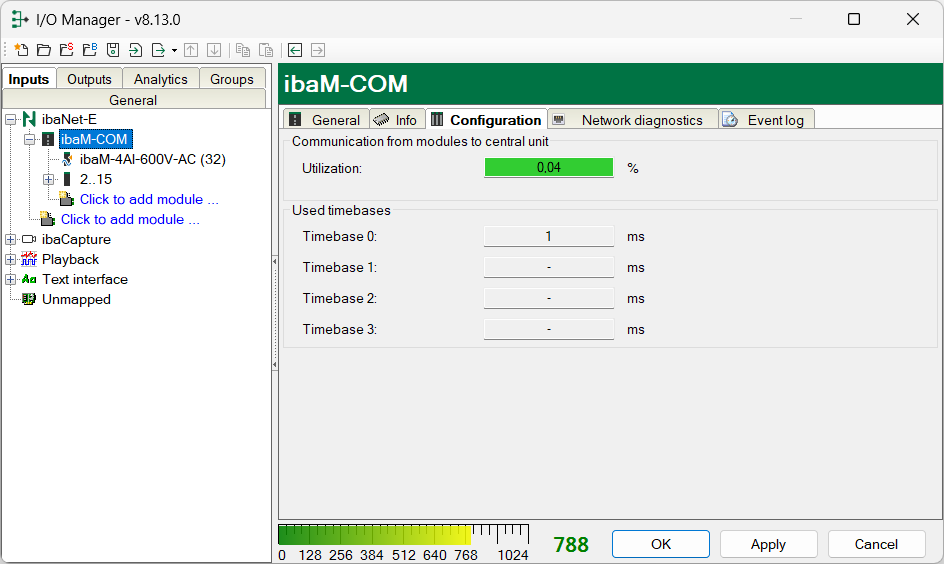

The Configuration tab displays information about the module-module interface and its configuration:

• Utilization of the module-module interface in percent

  The utilization of this interface depends on various factors, mainly the typical data throughput of 512 Mbit/s, the timebases used, and the signals configured in ibaPDA.

  The utilization indicator is green from 0 to 90%; above 90%, it turns orange, indicating imminent overload. If the module-module interface utilization exceeds 100% (the indicator turns red), data acquisition can no longer be started.

• Used timebases

  Each ibaM-COM device can have four different timebases for module configuration and communication. This overview shows the use of the timebases with the corresponding configured time in ms.
