It is also possible to add the ibaM-COM device to the I/O Manager and configure it without connecting the device at the same time.

To do this, follow the procedure described in chapter Adding a device manually, though in this case the modules, and/or the configuration, cannot be automatically identified and read out at the end, but must be added manually.

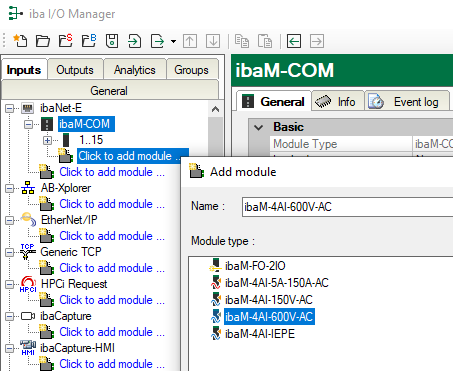

1. Highlight the ibaM-COM module and click on the link Click to add module …

   The module selection dialog appears:







2. Highlight the module you want, and either click <OK> or double-click on the module.

This offline option makes it possible, for example, to export a device and module configuration, or to save the entire I/O configuration of the I/O Manager.

For a detailed description, refer to the current ibaPDA manual.
