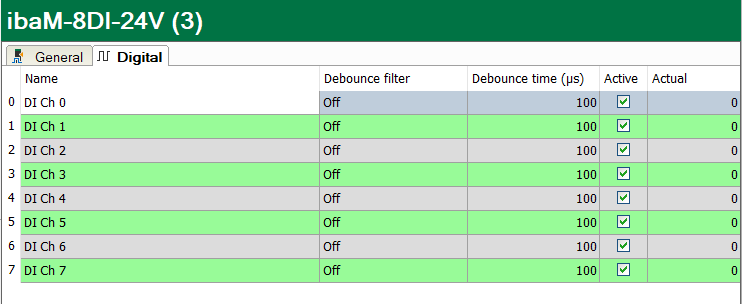

Make the following settings in the Digital tab.

Name

You can enter a signal name here, as well as two comments, by clicking on the icon in the Name field.

Debounce filter

You can select the operating mode of the debounce filter from a drop-down menu. Possible settings: Off, Stretch rising edge, Stretch falling edge, Stretch both edges, Delay both edges.

See chapter Debounce filter inputs

Debounce time (µs)

Here you can set the debounce time in µs.

Active

You can enable or disable the signal here.

Actual

Displays the current measured value.

You can show or hide additional columns using the context menu (right-click in the header).
