The TEDS tab displays the information from the TEDS.

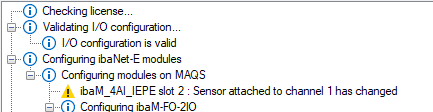

If TEDS identification is enabled, ibaPDA checks whether the corresponding TEDS sensor is still connected each time data acquisition is started. If this is not the case, a message will be displayed during validation.
While data acquisition is in progress, it is not possible to read the sensor data manually.
The TEDS data is only read and compared. Data, especially calibration data, is not automatically transferred to the ibaPDA configuration.

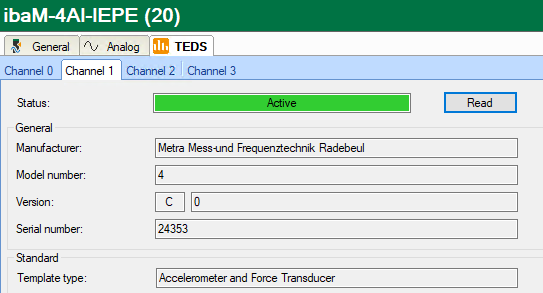

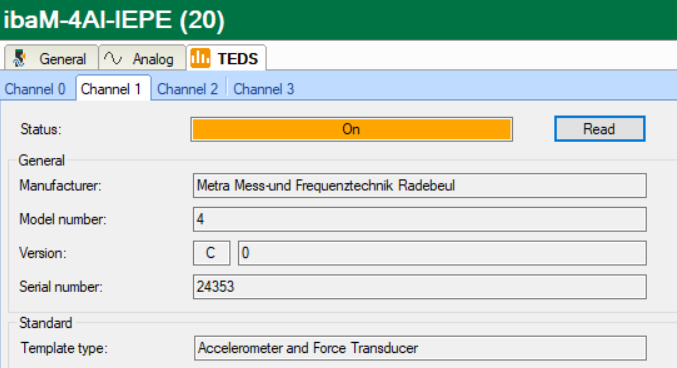

The display can change colors or show messages depending on different conditions:
-
Selected mode for this channel
-
Enabling TEDS identification
-
Sensor with or without TEDS
Displays in IEPE mode
|
Display |
Description |
|---|---|
 |
Sensor without TEDS or no sensor connected TEDS identification not enabled |
 |
Sensor without TEDS or no sensor connected TEDS identification enabled |
 |
Sensor with TEDS connected TEDS identification not enabled Manual reading of TEDS information possible with <Read> |
 |
Sensor with TEDS connected TEDS identification enabled Manual reading of TEDS information possible with <Read> |
Display in 24V mode
