If you have enabled Statistical values in the General tab, the Statistical values tab appears. The calculated statistical values are available as signals in the Statistical values tab. See also chapter Statistical values.

The signals are grouped by channel in the Channel 0 to Channel 3 tabs and can be activated individually.

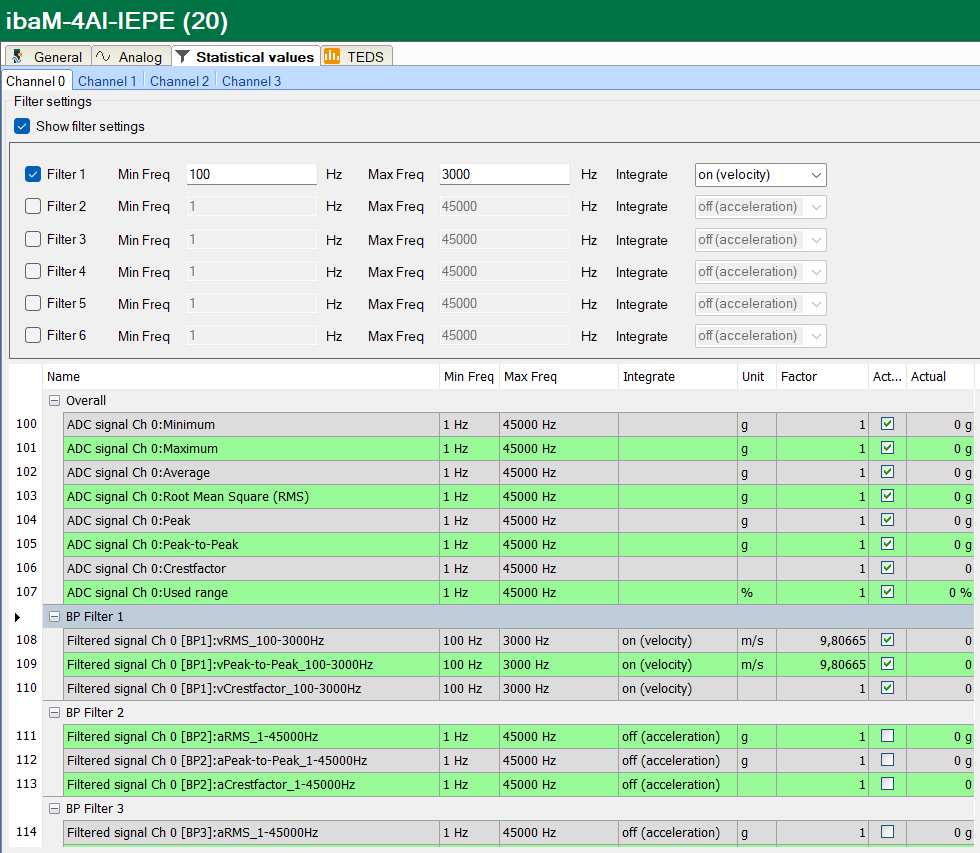

Filter settings

In the Filter settings section, you can enable the display of the filter settings for the bandpass filter. You can define 6 bandpass filters by entering the lower and upper limits of the frequency range. The bandwidth must be at least 50 Hz. You can also select the mode (velocity or acceleration).

A description of the bandpass-filtered characteristic values can be found in chapter Statistical values.

Name

The signal name is preset. It consists of the channel name and the statistical value. The frequency range is specified for signals with bandpass filters.

Min / Max Freq

Display of the lower or upper frequency.

Integrate

Off = acceleration values are output

On = velocity values are output

Unit

The unit can be selected using the drop-down list.

Factor

In IEPE mode, the value changes depending on the selected unit.

Active

You can enable/disable the signal here.

Actual

Display of the currently measured value.

You can display or hide additional columns using the context menu (right mouse click in the heading line).
