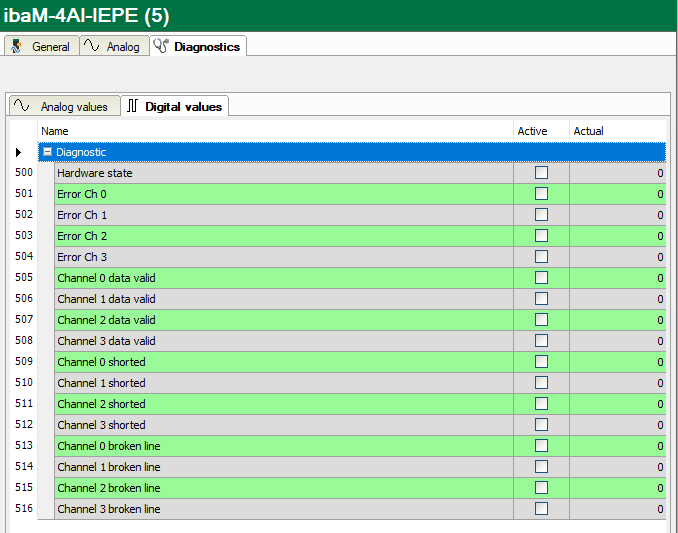

The Diagnostics tab displays the analog and digital diagnostic signals. The signals can be enabled individually.
Digital values
Analog values
The meaning of the signals:
|
Name |
Meaning |
|---|---|
|
Hardware state |
live bit to indicate the hardware status (1 Hz) |
|
Error Ch x |
hardware error in channel x |
|
Channel x data valid |
see chapter Error signals and status signals |
|
Channel x shorted |
|
|
Channel x broken line |
|
|
Calibration date |
32-bit value that represents the seconds since 1970. This number can be converted to text using a virtual signal: ConvertUnixTimeToText() |
