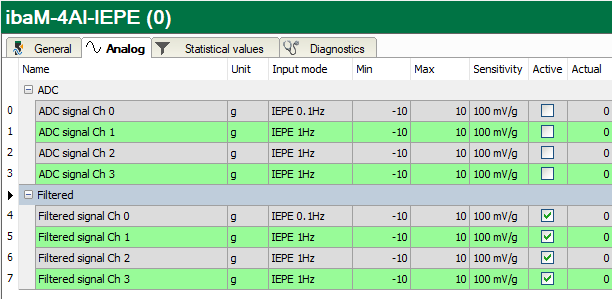

The Analog tab lists the analog signals in two groups. The ADC group contains the ADC signals directly after the A/D converter, while the Filtered group contains the filter signals with the additional digital anti-aliasing filter.

Name

You can enter a signal name here, as well as two comments, by clicking on the icon in the Name field.

Unit

The unit is preset.

Input mode

Displays the input mode, based on the setting on the General tab.

Min/Max

You can define an upper and lower limit for the measuring range here. The analog voltage level of the upper and lower limit is assigned to a physical variable. The lower or upper limit for the measuring range is only possible in both 24V modes.

The dialog box is opened by clicking on the cross.

Sensitivity

Specifies the sensitivity of the sensor.

Active

You can enable or disable the signal here.

Actual

Displays the current measured value.

You can show or hide additional columns using the context menu (right-click in the header).
