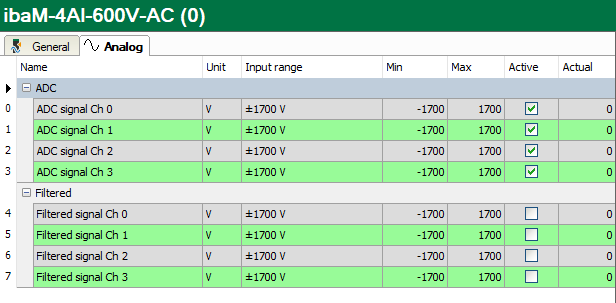

The Analog tab lists the analog signals in two groups. The ADC group contains the ADC signals directly after the A/D converter, while the Filtered group contains the filter signals with the additional digital anti-aliasing filter.

Name

You can enter a signal name here, as well as two comments, by clicking on the icon in the Name field.

Unit

The unit “V” is preset.

Input range

Displays the input range, based on the setting on the General tab.

Min/Max

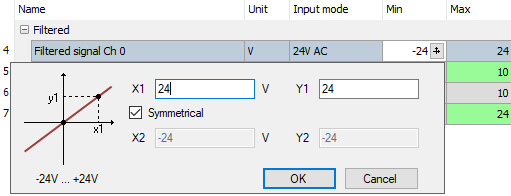

You can define an upper and lower limit for the measuring range here. The analog voltage level of the upper and lower limit is assigned to a physical variable. The dialog box is opened by clicking on the cross.

Active

You can enable or disable the signal here.

Actual

Displays the current measured value.

You can show or hide additional columns using the context menu (right-click in the header).
