A total of 4 input signals can be connected here (0 ... 3), each of which must be bipolar and electrically isolated. Each channel is connected using a two-wire system.

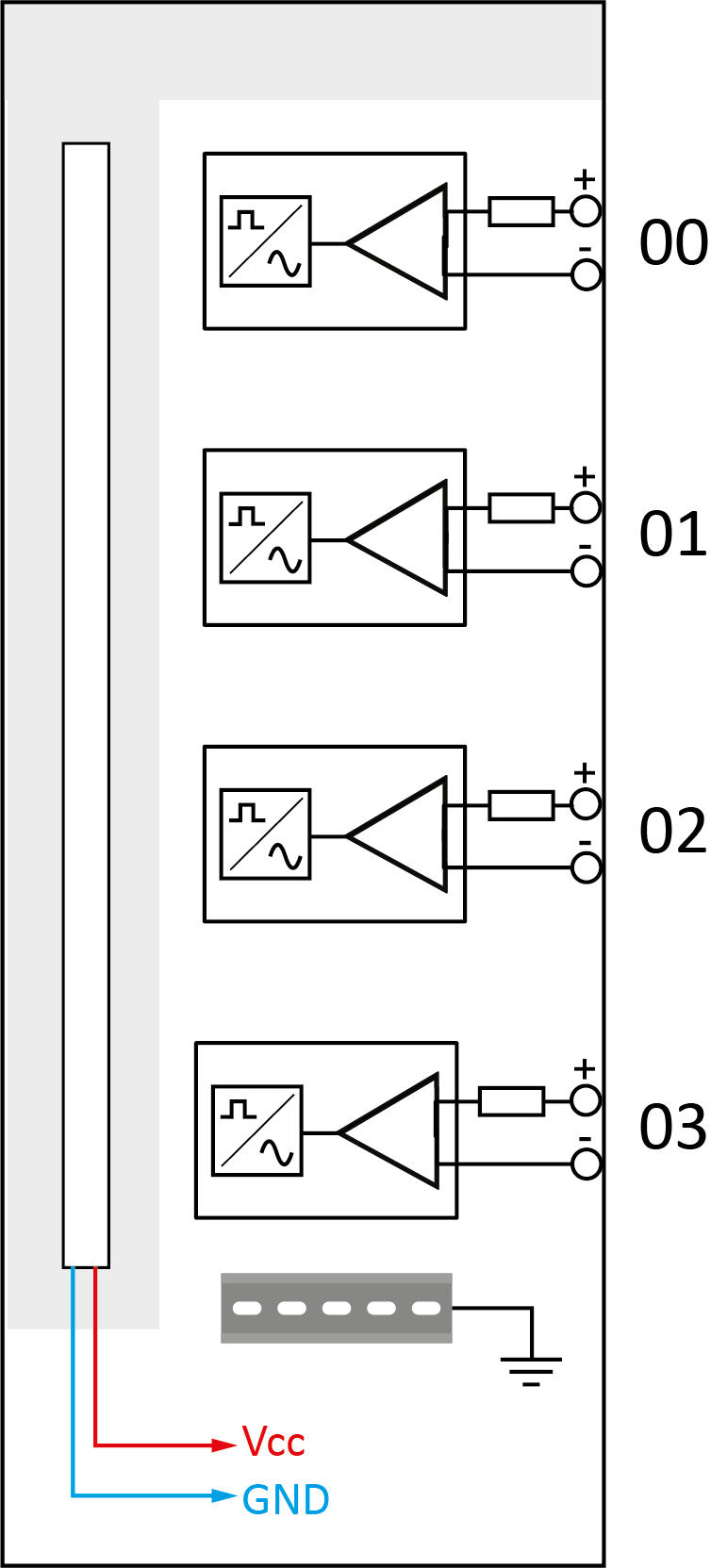

Pin assignment
|
Connector |
Pin |
Connection |
|
X1 |
1 |
Analog input 00 + |
|
2 |
Analog input 00 - |
|
|
3 |
Analog input 01 + |
|
|
4 |
Analog input 01 - |
|
|
X2 |
1 |
Analog input 02 + |
|
2 |
Analog input 02 - |
|
|
3 |
Analog input 03 + |
|
|
4 |
Analog input 03 - |
Caution! |
|
|---|---|
 |
Measuring cable
|
Circuit diagram

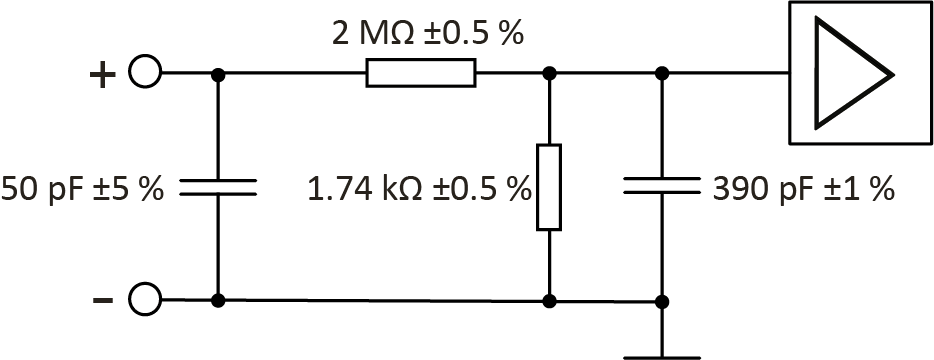

The input circuit diagram of one channel is shown here as an example.
