For information on the individual modules connected to the IO bus, see the Info tab on the central unit.

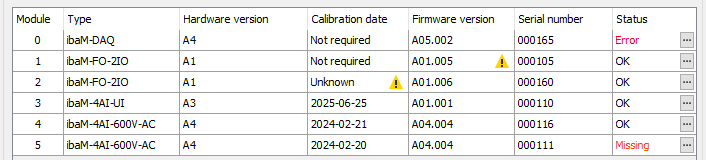

Select the central processing unit module in the I/O Manager—either ibaM-DAQ or ibaM-COM—and choose the Info tab. In the System information section, you will find a table containing details such as module type, hardware version, calibration date, firmware version, serial number, and status.

Meaning of the following columns:

Calibration date

The following information can be displayed in the Calibration date column:

• Not required: The module does not need to be calibrated.

• Unknown: The state of the calibration cannot be determined.

  In this case, restart the device or the IO bus. If “Unknown” continues to be displayed, contact the iba support.

• YYYY-MM-DD: Date of last calibration (in year-month-day format)

Firmware version

If the firmware version of a module does not match the version included in the firmware package or if no firmware is included for this module in the firmware package, an exclamation mark appears.

Status

If an error is displayed here, click <...> to see information about the cause of the error.
