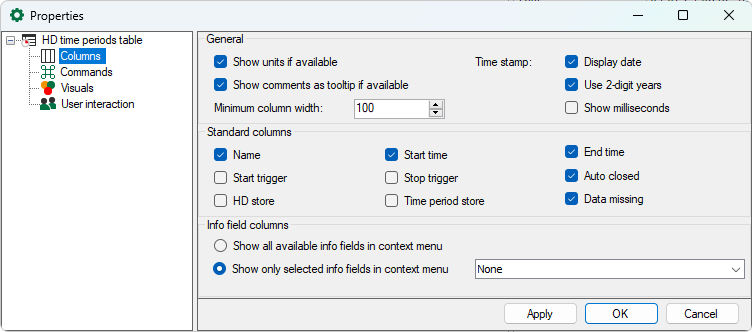

In the Columns dialog, you define the formatting of the columns and the info fields.

General

Use the options to choose how the data will be formated in the columns.

Standard columns

The selected columns are displayed in the HD time periods table.

In addition to the Name of the time period, you can choose from the following columns:

• Start time and End time

• Start trigger and Stop trigger

• HD store und Time period store

• Auto closed: This value is "0" if the time period was closed by a stop trigger and "1" if ibaPDA has closed it automatically. ibaPDA closes a time period automatically if the maximum time period duration is exceeded. ibaPDA also automatically closes all open time periods if the acquisition is stopped in standard mode.

• Data missing: This value is "0" if the signal data is available in the HD store for the entire duration of the time period and "1" if some data is missing. ibaPDA sets the value for all open time periods in tracking mode to "1" when the acquisition is stopped.

Info field columns

You can choose from the following options:

• Show all available info fields in context menu

  If enabled, you can show and hide all info fields defined in the various events as columns via the context menu of the HD time segment table.

• Show only selected info fields in the context menu

  In the list, select the info fields that are to be available as additional columns in the HD time period table. You can show and hide these via the context menu.
