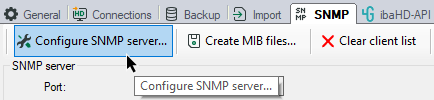

In the ibaHD Manager, SNMP tab, select the menu button Configure SNMP server….

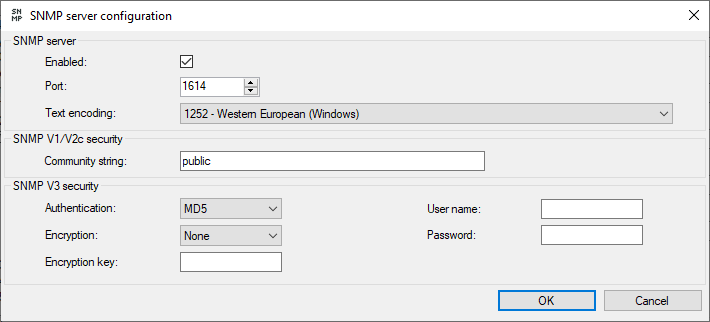

In the SNMP server configuration, make the necessary settings.

Enabled

Here you can enable and disable the SNMP server.

Port

Here you can specify the port over which the SNMP server will communicate. The default value is 1614.

Text encoding

Set the appropriate text encoding for the correct appearance of the characters here. The default setting is 1252 – Western European (Windows).

SNMP V1/V2c security

Community string

In the log versions V1 and V2c, only a community string can be submitted for authentication. This serves as a password for the data transfer between the SNMP server and SNMP client. The default value for the community string is "public."
SNMP V3 security

Authentication, user name, password

In log version V3, the security standards are more stringent whereas there are multiple methods available for authentication and encryption. Two standards are supported for user registration:

  • MD5 (message digest algorithm 5, hash function, 128-bit)

  • SHA (secure hash algorithm, SHA1 class, hash function, 160-bit)

In addition to selecting the registration algorithm, you must also enter a user name and password.

Encryption, encryption key

In terms of encryption, you will have the following options:

  • None

  • DES (Data Encryption Standard)

  • AES (Advanced Encryption Standard)

In addition to selecting the authentication type, you must also enter a key.
