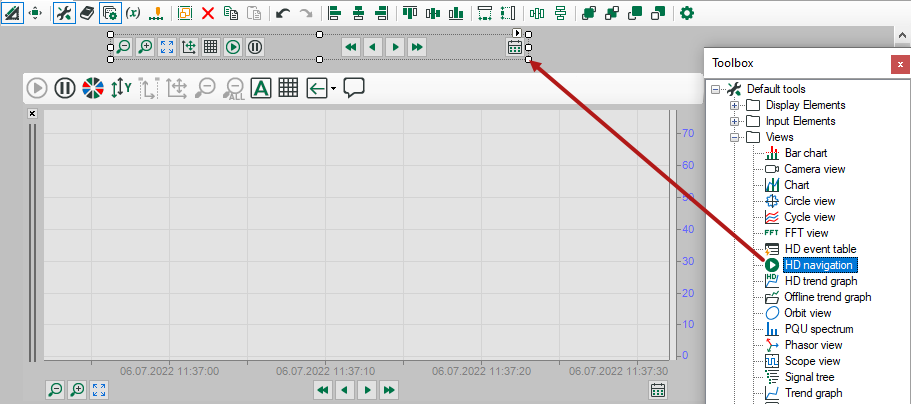

With the HD navigation element, several HD trend graphs can be controlled simultaneously.
During the configuration of the HD navigation bar, you can decide which buttons are visible and which HD trend graph should be connected with them. The time-based as well as the length-based HD trend graph can be assigned to the same HD navigation bar. During the navigation with the scroll buttons, the steps in the according unit will be made, as described in chapter Operation and setup of time-based HD trend graphs.
|
|
Zoom function |
|
|
Zoom reset |
|
|
Display/hide the marker table 1) |
|
|
Play, pause |
|
|
Scroll (big and small steps) |
|
|
Jump to a date |
1) For this function, the visibility of the marker table has to be set to “manual” in the properties of the HD trend graph.
