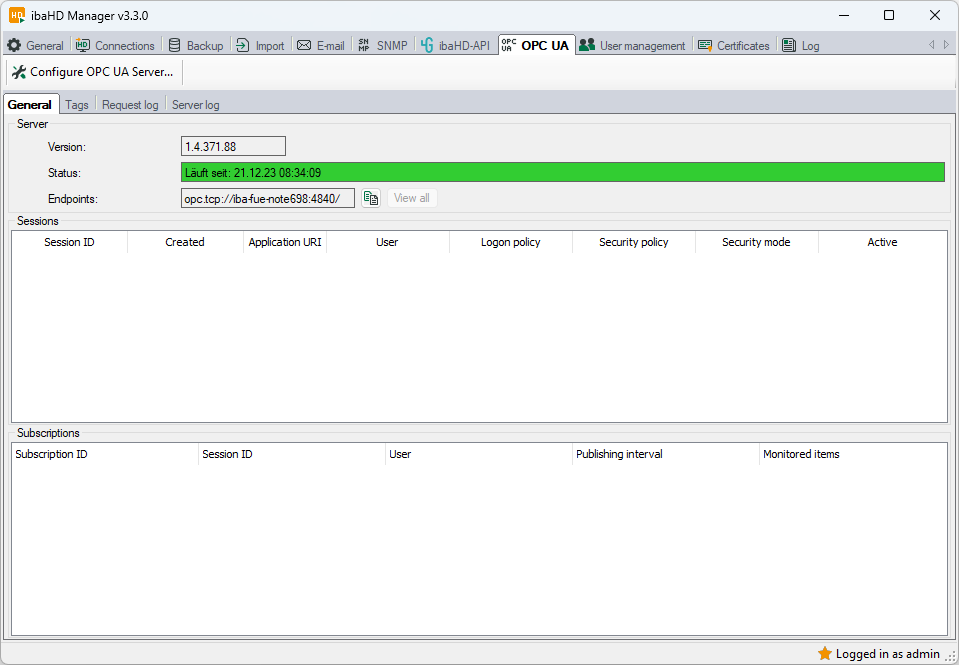

Server

The Server section shows the software version of the OPC UA libraries used.

In addition, the last start time of the OPC UA service is shown and the current status of the OPC UA server is indicated by the corresponding background color:

• Green - Running

• Red - Stop

• Gray - Disabled

• Yellow - Configuration change in progress

The Endpoints field shows the configured URLs for one or multiple endpoints. You can use the button to copy the endpoint to the clipboard. If multiple endpoints are configured, the View all button is enabled. This enables the available endpoints to be displayed in a separate list.

Sessions

The table shows the current sessions and properties such as user and application information.

Subscriptions

The table shows the number of subscribed variables and additional subscription properties for each session.
