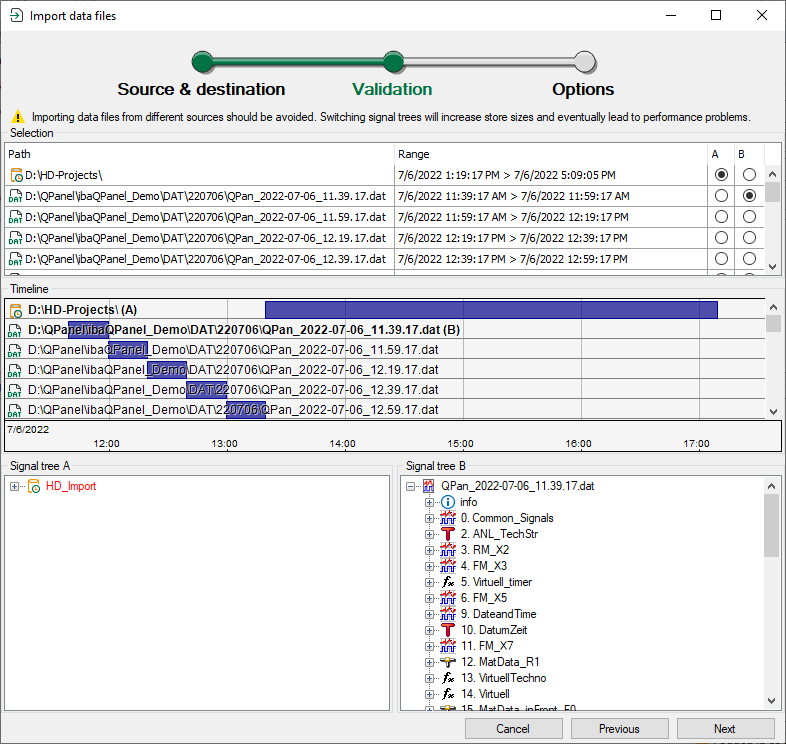

During the validation, the upper part of the dialog shows a table with the destination store and the data files selected in the previous step.

Below this along a timeline the databases are shown in a destination store and in the backups as bars. If you position the mouse in the timeline area, you can zoom with the mouse wheel. You can move the time axis with the mouse on the time scale (hold down the left mouse button).

In the lower area, there are two signal tree windows A and B. Use the option fields in the columns A and B of the table above to decide which signal tree is shown in it. In this way, you can compare the signal trees and, for example, check whether the data file and destination store match each other. Differences between the signal trees are highlighted with red font.

The example in the image above shows the import of several data files into a still empty HD store.

Click on the <Next> button to go to the next step.
