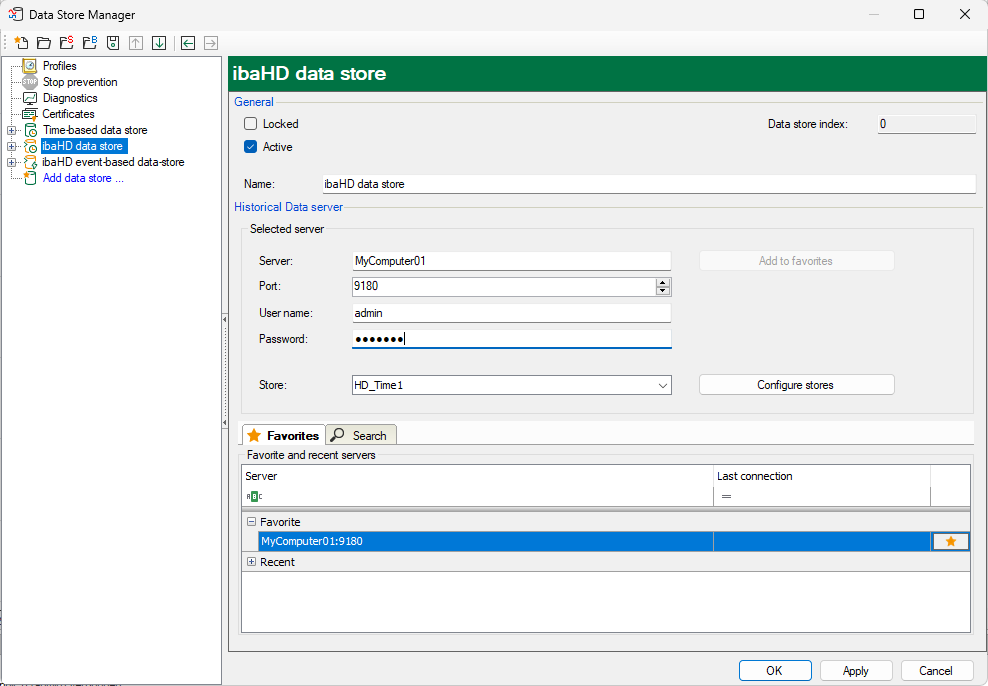

Select ibaHD-Server and HD store

General

Locked

If this option is selected, a modification of the data storage is not possible any more. Locked data storage can only be unlocked by authorized users.

Active

Here you can select if the HD data storage is active or not.

Data storage name

Here you can assign a name for the HD data storage; Default setting: HD data storage n

HD Server

All ibaHD-Servers recognized in the network are displayed in the Search tab. Click the <Search> button to update the list. Alternatively, you can also select from servers that have been marked as favorites or recently used in the Favorites tab.

Note
	While using network routers or hubs, the search function may fail. In this case you have to manually enter the HD server name and the HD store name. In case of not connected network cables, an ibaHD-Server locally installed on the ibaPDA computer will eventually not be displayed, too.

Select an ibaHD-Server where the HD data storage of your data shall be sent. If you select an ibaHD-Server with activated user administration, you still need to enter your user name and password.

If an ibaHD-Server is selected, it appears in the Server field and you can select one of the HD stores already created there from the selection list in the Store field.

Configuring stores

If no HD stores should be available, for example during the first commissioning, you must configure HD stores first.

The configuration dialog for the HD stores can be reached either here in the ibaPDA data recording configuration via the button <Configure stores> or via the ibaHD Manager, in the General tab.

For more detailed information about configuring HD stores, see Configure HD stores.
