At first, select the ibaHD server whose data shall be displayed:

Click on the button in the toolbar

Or go to the menu Configure – Select ibaHD server …

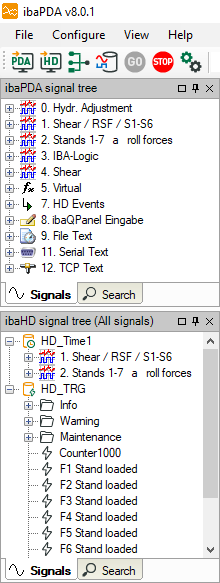

The ibaHD server selection window will be opened. Select an ibaHD server from the list or enter the IP address or the computer name in the address line. Accept the selection with <OK>. The HD stores with the created signals configured on the ibaHD server are displayed as additional HD signal tree.

Login information will be requested in case the HD user management is enabled.

You can display and hide the HD signal tree via the menu View – ibaHD signal tree.

Tip
	You can also drag and drop the HD signal tree on other positions in the ibaPDA client. For example, you can arrange the standard signal tree and the HD signal tree over two tabs in the same window.
