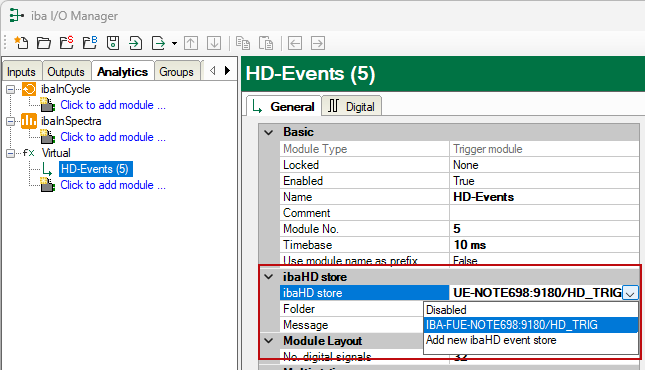

When configuring trigger modules in the ibaPDA I/O Manager, you can define in the module settings in which HD event store the trigger firings are written as events.

You can also select a folder in the ibaHD store in which the trigger events of this module are to be stored. If there is no folder yet, you can create a new folder.

Note
	Please note that only one trigger module may write the events to the specified folder and that no additional events may be written to this folder. Otherwise, the order of existing events may be changed when new events are added.

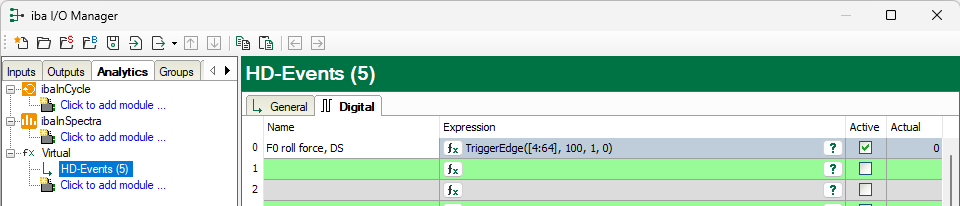

All triggers which are configured in the module generate an event in the selected HD event store when firing. Definition of the trigger in the I/O Manager in ibaPDA:

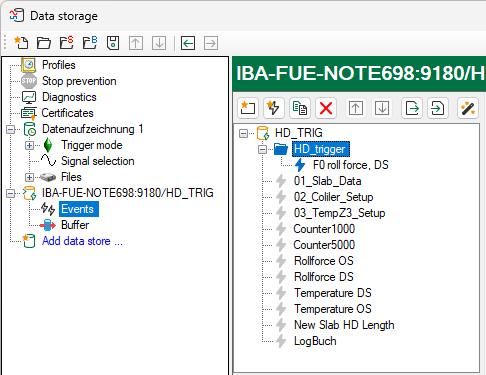

Events, which have been created by trigger modules have a blue icon in the event tree. It indicates that these events cannot be edited in the configuration dialog of the event-based data store.
