On the Data storage status range, the status of the HD data stores is displayed and which data volume is currently being written on the ibaHD-Server.

Example with a time based dat file, currently recording:

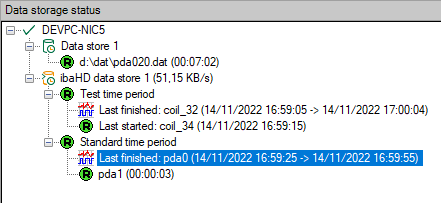

For time-based HD data stores with time periods, the current status of the time periods is shown. When recording in standard mode, the last finished time period and the currently recorded time period are displayed (in the example Standard time period).

The last finished time period and the start time of the currently recorded time period are displayed in the tracking mode (in the example Test time period).

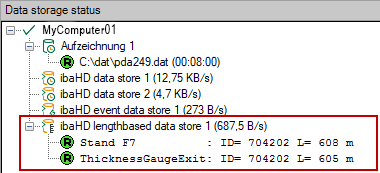

In case of a length-based data recording additional information about the current product ID and the calculated product length for each measuring location is displayed.

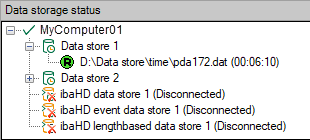

If the connection between the HD data store and the ibaHD-Server is interrupted, this will be displayed by a status accordingly modified.

For example, an interruption can occur by modifying the configuration of the HD data store or of the signals/events. When the HD data store of ibaPDA writes on the ibaHD-Server via a network (separated installation of ibaPDA and ibaHD-Server on different computers) faults in the network can lead to interruptions.

Note

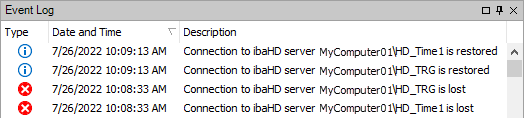

	ibaPDA periodically tries to restore an interrupted connection to the ibaHD-Server. When a connection of an HD data store has been interrupted or restored, this will be compiled in the event log of the ibaPDA.
