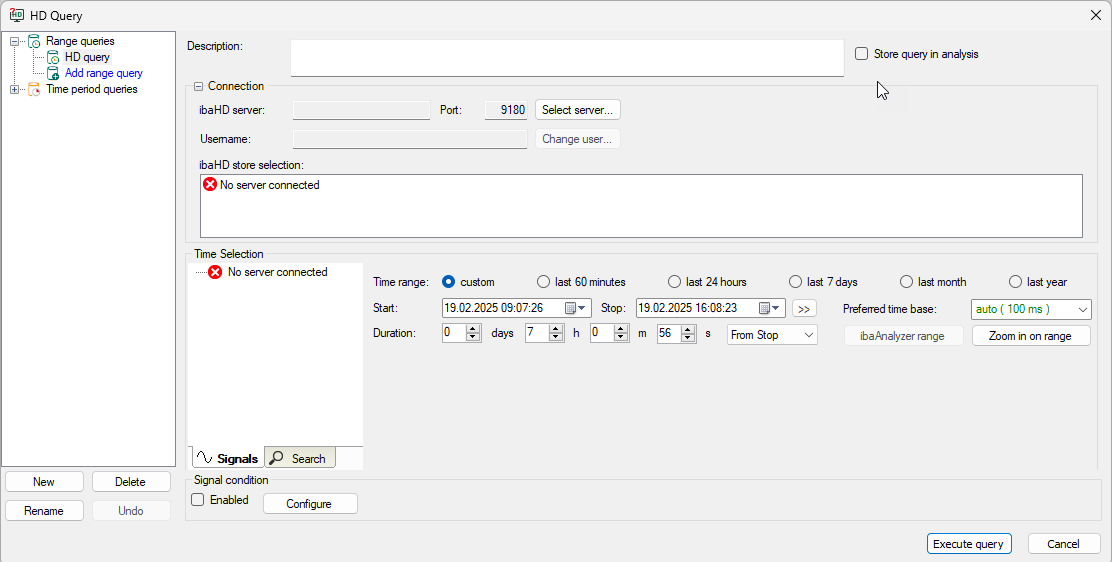

If you add, append or replace an HD query, the HD query dialog opens.
If you are using the HD query function for the first time, you must first establish a connection to the ibaHD-Server and the desired HD storage. You can then configure and execute the query.
You can configure several different HD queries and time period queries and assign them a unique name. The queries are listed on the left-hand side of the dialog. You can enter a description for each HD query and specify whether the query should be saved in the analysis.
To configure a HD query, perform the following steps:
-
Set up the connection to the ibaHD-Server from which you want to retrieve data, see Setting up a connection to the ibaHD server.
-
Specify the time range for which the query is to be made.
For HD queries, see Time selection for the HD query.
For time period queries, see Time period queries.
-
Optionally limit the query with conditions to certain events or signal states, see Formulating signal conditions.
