ibaAnalyzer displays the result of a time period query like a data file in the signal tree. The options you have for HD query results also apply to time periods, see HD query results.
The signals and info fields come from the HD store.
If you have queried several time periods, ibaAnalyzer can handle the query result of the time periods in different ways. You determine this in the query under On multiple time period selection.
-

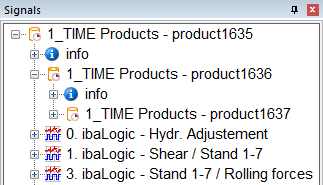

Appended: The time periods are displayed one after the other as if the data files were appended to each other.

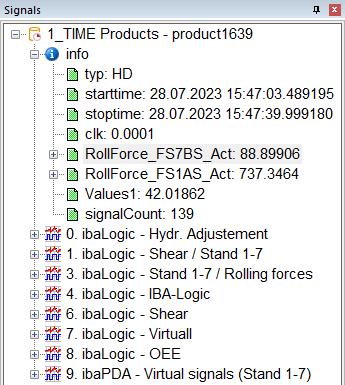

You can also display the info fields as a graph by double-clicking on them. For further information, see ibaAnalyzer manual part 3, InfoField, InfoFieldText and InfoFieldTime functions.
-

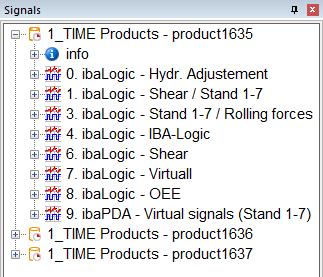

Parallel: The time periods are opened side by side.
-

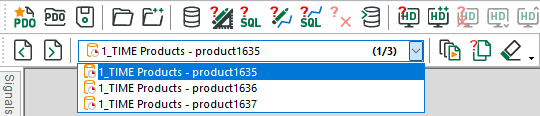

File group: The time periods are available in the file group field and are treated like a data file group. You can also perform a file group query.
Other documentation |
|
|---|---|
 |
Further information on the behavior of data files can be found in the ibaAnalyzer manual part 2, The data file. |
