The following example shows the procedure for creating a condition.

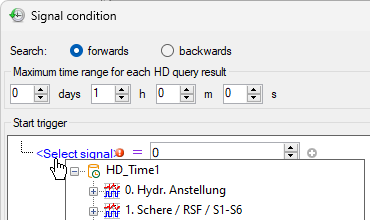

1. Click on the blue text Select signal and select the desired signal in the signal tree, e.g. a digital signal.

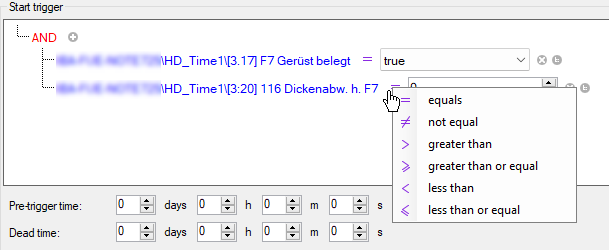

2. Click on the operator symbol and select the operation, e.g. equal or unequal for a digital signal.

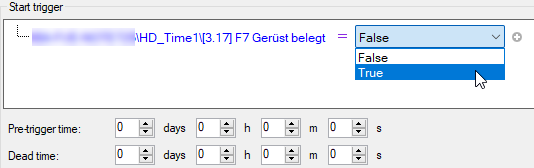

3. Select a comparison value, e.g. "True" for a digital signal.









4. If you want to add another condition, click on the icon.









   A new expression is created and logically linked to the previous expression with AND.

5. Formulate the second expression, e.g. with an analog signal that you compare with a limit value.

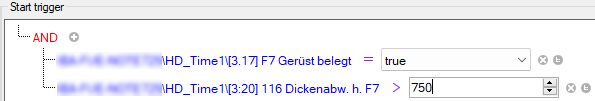

6. Enter the desired limit value above which the trigger should be activated by the selected analog signal.

   Here in the example 750 µm.

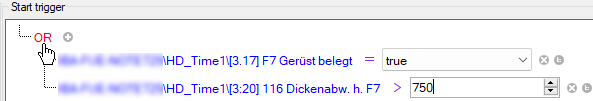

7. With the AND link, both expressions must be "True" for the trigger to fire. If you want the trigger to fire when only one condition is met, click on the red AND to switch to the OR link.

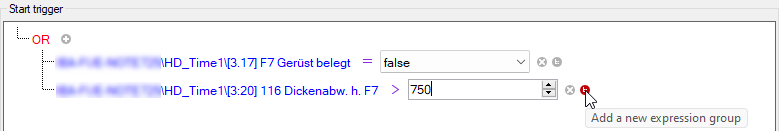

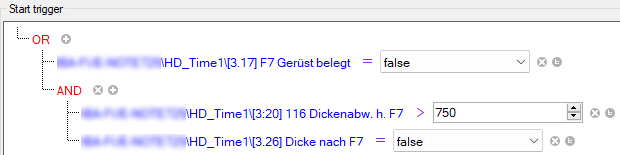

8. You can also cascade conditions by combining expressions into groups. To create a group, click on the icon for the expression that is to be the first member of the group.









9. The expressions in the group are combined with their own logical link (AND by default).









   To add further expressions to the group, use the icon at group level.
