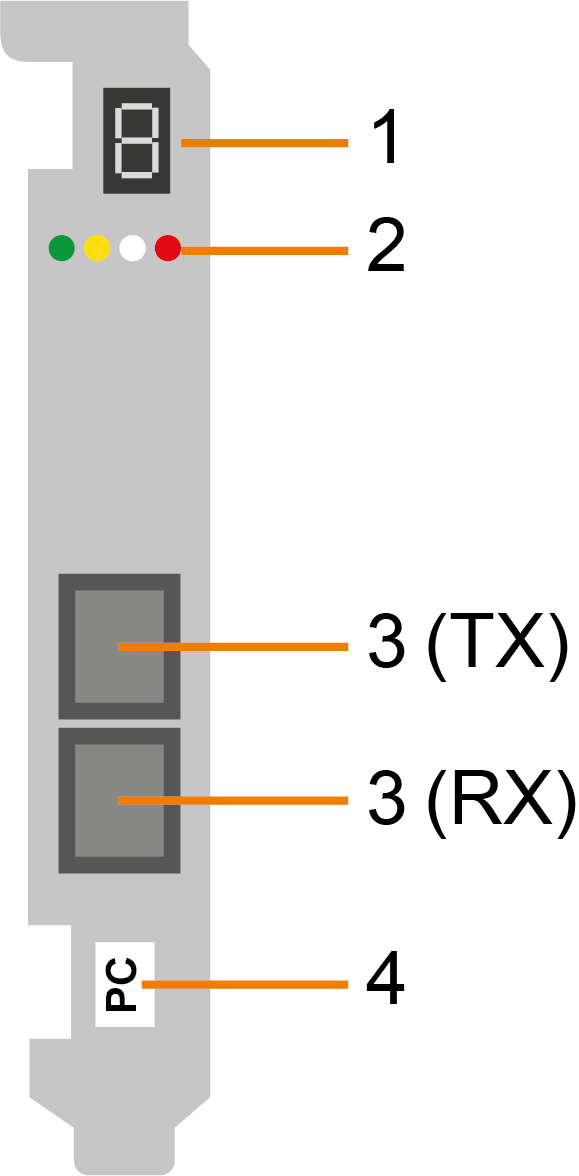

ibaFOB-PlusControl
|
1 |
7 segment display |
|
2 |
Operating status indicator |
|
3 |
Fiber optic connection (duplex SC) |
|
4 |
Identifier for cards of the ibaFOB family |

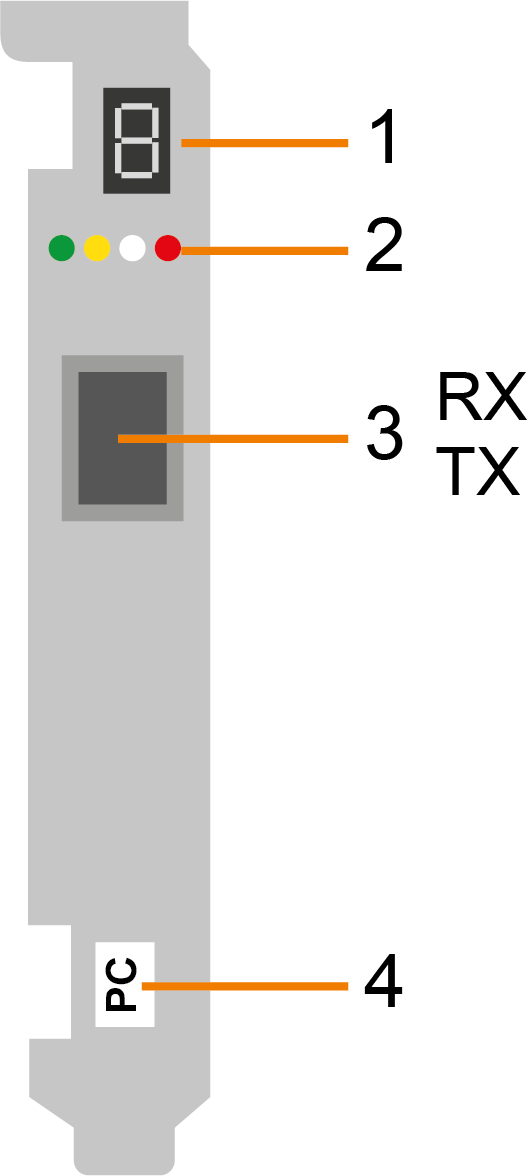

ibaFOB-PlusControl- SFP
|
1 |
7 segment display |
|
2 |
Operating status indicator |
|
3 |
SFP cage with pre-assembled SFP module (duplex LC) |
|
4 |
Identifier for cards of the ibaFOB family |
The identifier is used to distinguish the individual ibaFOB card types. The following identifier stands for the following card types:
D: ibaFOB-D and ibaFOB-Dexp
TDC: ibaFOB-TDC and ibaFOB-TDCexp
SD: ibaFOB-SD and ibaFOB-SDexp
PC: ibaFOB-PlusControl
