If you click on the ibaFOB-PlusControl interface in the tree structure of the I/O Manager, 3 tabs appear in the right part of the dialog window showing the card properties.
Configuration tab
In addition to the image of the card the interrupt mode, addresses and memory regions in the PCIe bus are displayed.
The graphic depiction of the card is dynamic, i.e. the 7 segment display with the card number and the LEDs for the connection status reflect the same status that can be seen on the card itself. See chapter Card configuration.
The displays and their meanings are summarized in chapter Indicating elements.

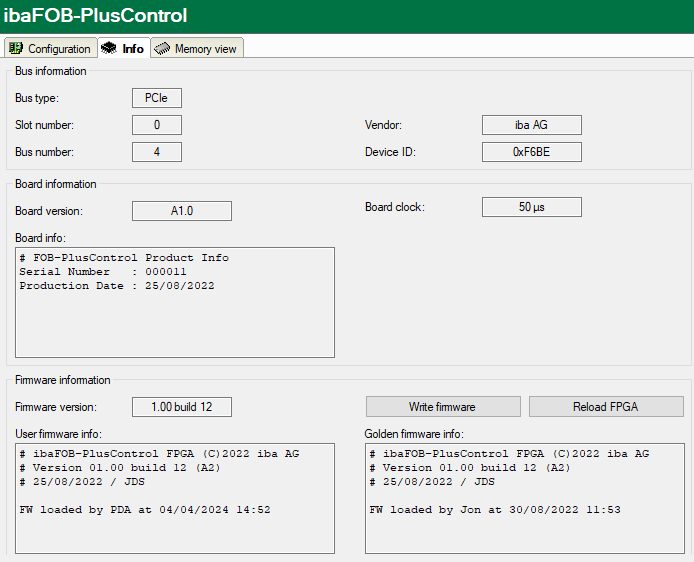

Info tab
On the Info tab you can see information about the card and the loaded firmware. Functions for service and support, such as reloading the FPGA and updating the firmware are available on this tab.
Note |
|
|---|---|
|
A firmware update should only be performed after consulting the iba support. The respective file can be selected and loaded via the “Write firmware” dialog. |
|
Memory view tab
The memory view can be used for diagnostics of internal register and memory ranges.
