A group is generated automatically for each ibaFOB-PlusControl card. The group names are preset with the interface name, e. g. “ibaFOB-PlusControl”. The names, however, may be changed, see also chapter Link configuration.

The signals from the preferred modules are entered automatically in the groups. The signals from the standard groups are entered in the groups only when the setting “Generate groups” is set to TRUE.

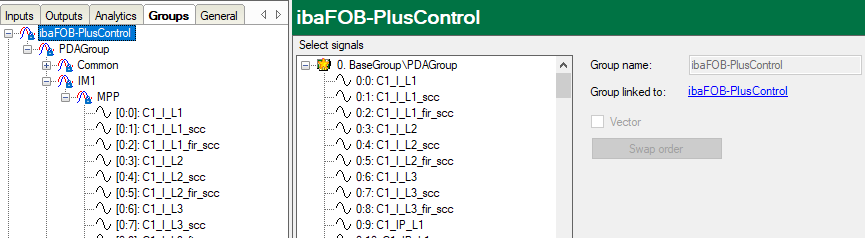

The grouped signals are displayed in a tree structure according to the address book. The generated groups cannot be deleted and are indicated by a key symbol.

Signals which are selected several times will be entered in the group only once.

Grouped symbols
