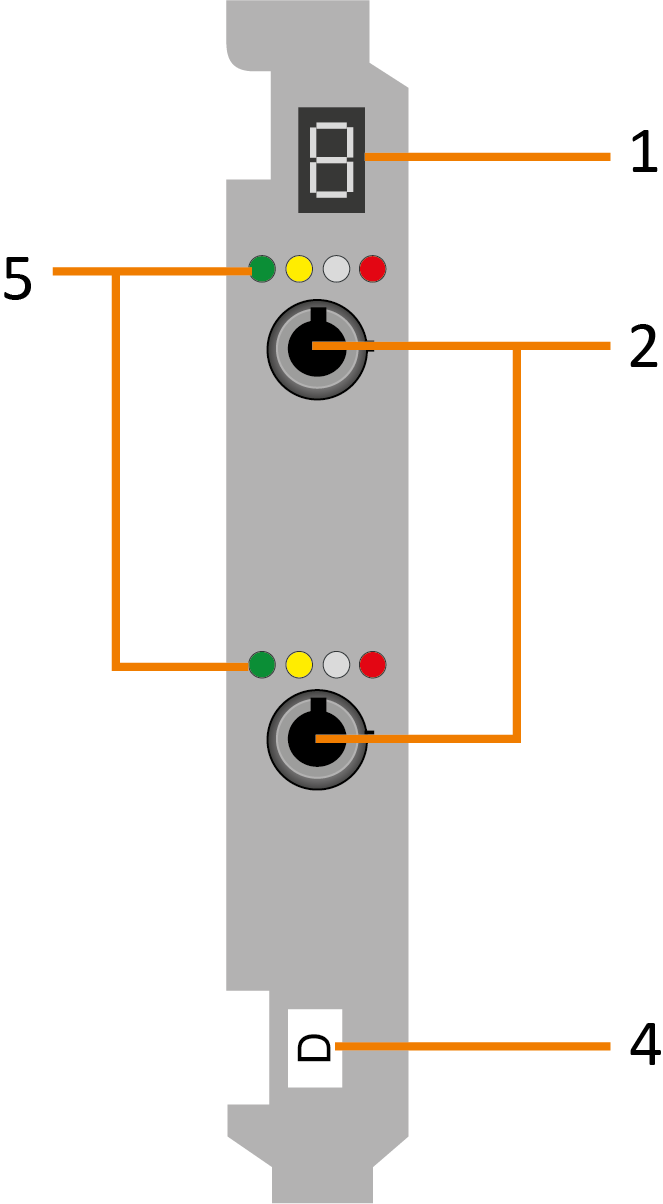

ibaFOB-2i-Dexp  |

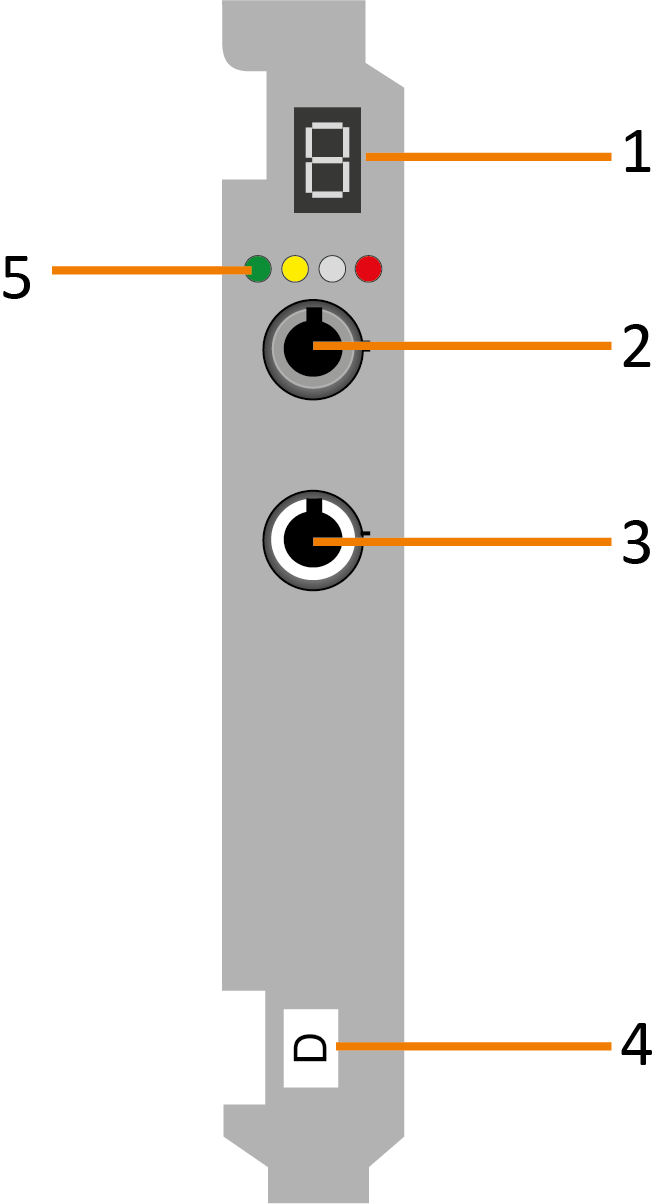

ibaFOB-io-Dexp  |

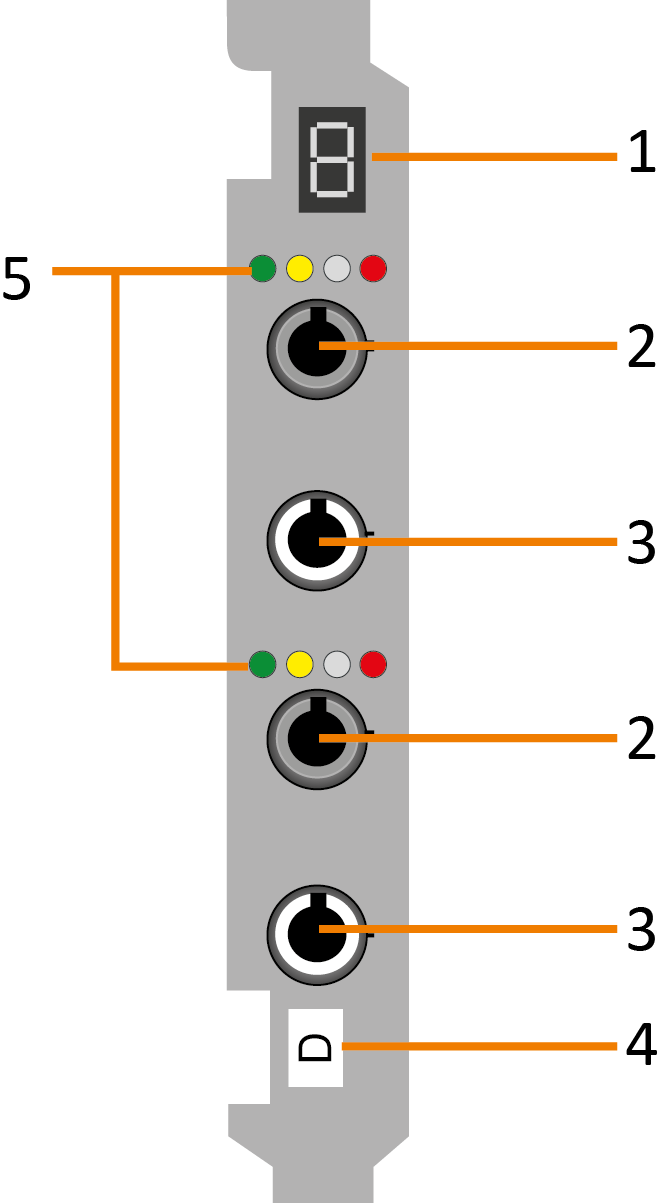

ibaFOB-2io-Dexp  |

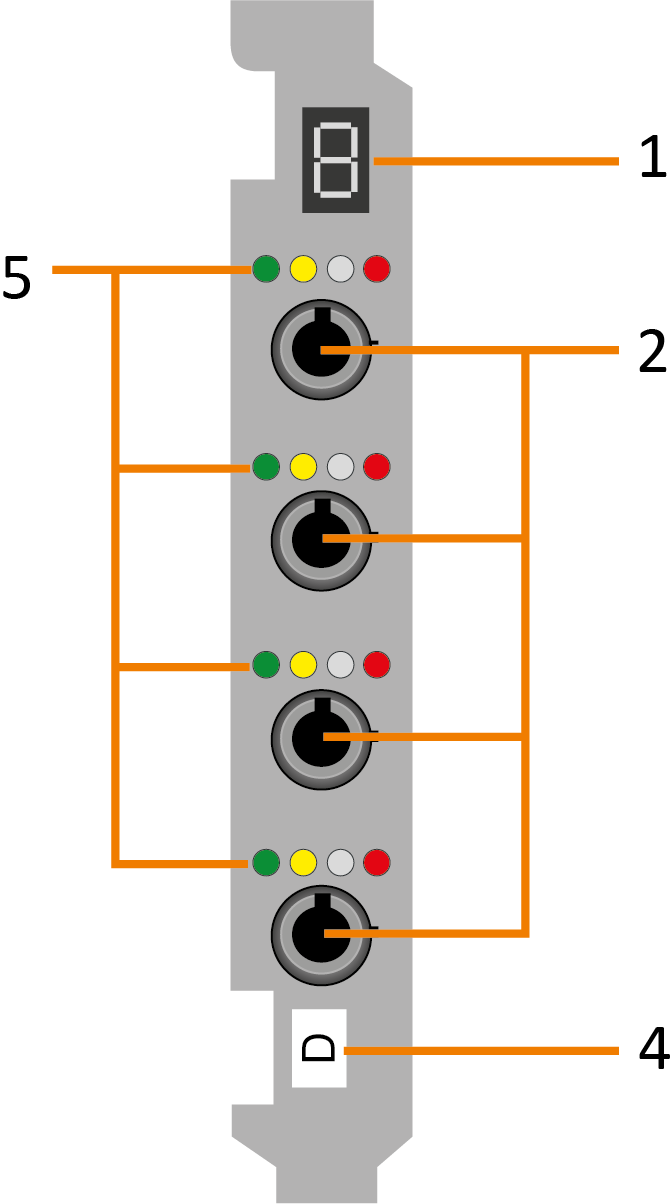

ibaFOB-4i-Dexp  |
|
1 |
7 segment display |
|
2 |
FO inputs (dark gray) |
|
3 |
FO outputs (light gray) |
|
4 |
Identifier for cards of the ibaFOB-D family |
|
5 |
Communication status FO connection |
The identifier (4) is used to distinguish the individual ibaFOB card types. The following identifier stands for the following card types:
|
D |
ibaFOB-D and ibaFOB-Dexp |
|
TDC |
ibaFOB-TDC and ibaFOB-TDCexp |
|
SD |
ibaFOB-SD and ibaFOB-SDexp |
|
PC |
ibaFOB-PlusControl |
|
R |
ibaFOB-R |
