In this mode, only the "ibaNet750-BM" and "FOB alarm" output modules are available for selection. A maximum of 64 analog and 64 digital output signals can be configured for both modules.

Descriptions using the example of a "FOB alarm" module:

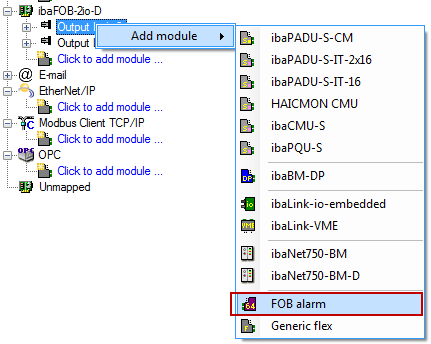

You can add an "FOB alarm" module to each output.

You can change the name of the "FOB alarm" module individually. This provides the advantage of a clear assignment within the measurement system.

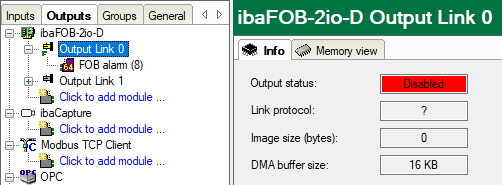

Output links without “FOB alarm” modules or with “FOB alarm” modules assigned but without any signals configured will be marked as disabled in the Info tab.

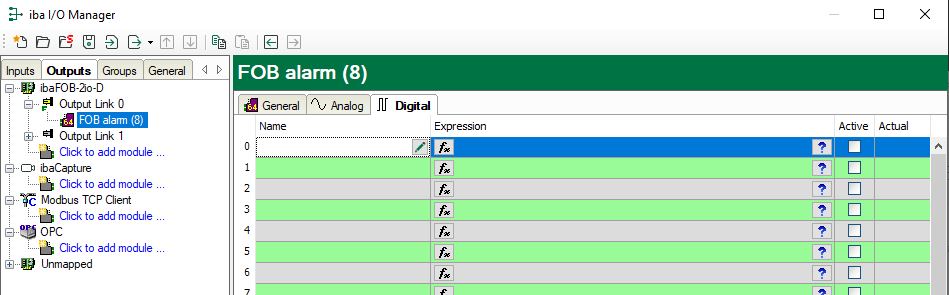

After adding “FOB alarm” modules, you must configure the corresponding output signals (analog or digital) for each module.
