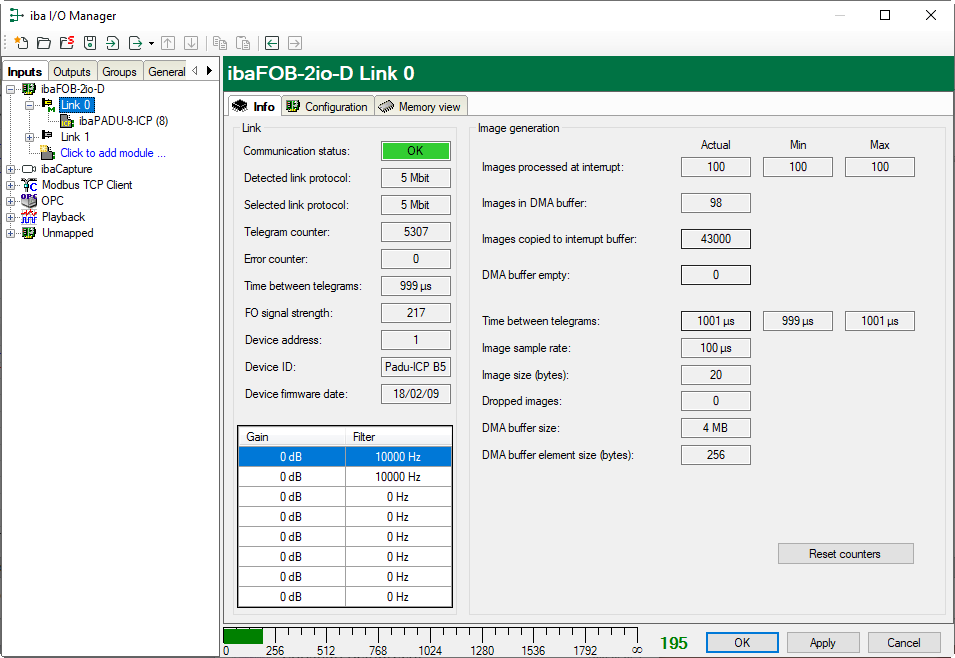

The following screenshot shows the information you see when a link operates at 5Mbit, e. g. with ibaPADU-8-ICP.

Information on the Link and Image generation areas can be found in chapter Link view – 32Mbit.

Additional information is:

Device firmware date

The firmware date of the connected device

Gain and filter table

The gains and filters that are configured in the device. This only applies to ibaPADU-8-ICP devices.
