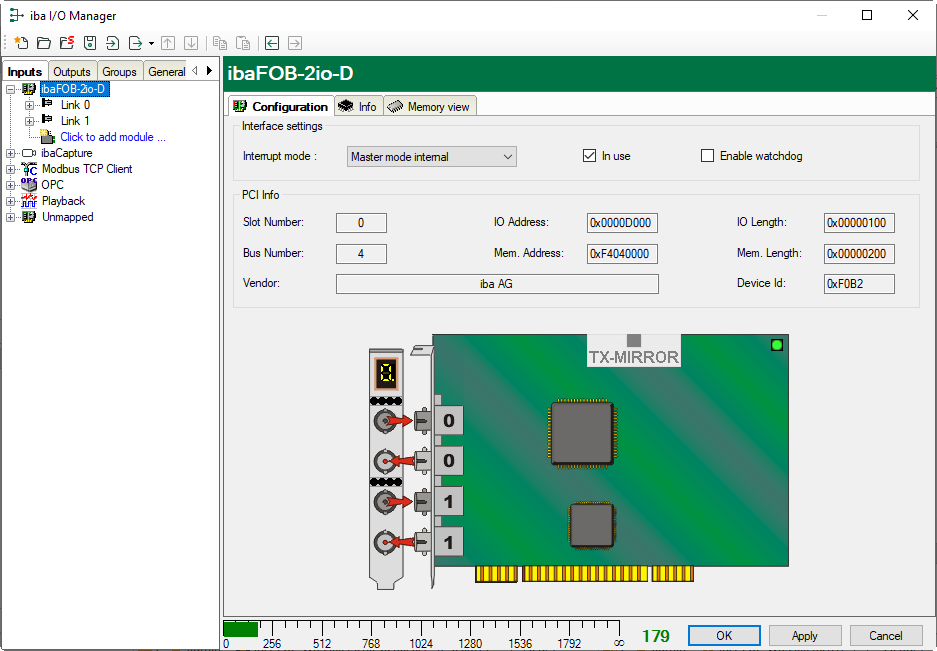

On the Configuration tab, you can setup the interrupt mode.

If you mark the node of the “ibaFOB-2io-D” interface (for example) in the tree view of ibaPDA I/O Manager, a graphical representation of the board is displayed on the right side of the dialog.

In use

Enable the option, if you want to use this card with ibaPDA.

Enable watchdog

Activate this option to monitor the function of the ibaPDA system by another system. If the watchdog is enabled then the board will generate an alarm telegram when the acquisition is not running for more than 2 seconds. The alarm telegram can only be used by the FO output channels (I/O Manager Outputs). Therefore, an ibaFOB-io, ibaFOB-2io or ibaFOB-4o card is required.

In case of an alarm, all output values will be set to 0 (zero) in the alarm telegram.

The alarm is also activated during the reset of the computer. If an alarm occurs, all red LEDs on the fiber optic inputs light up. The LED for the debug on the card then also lights up red.
