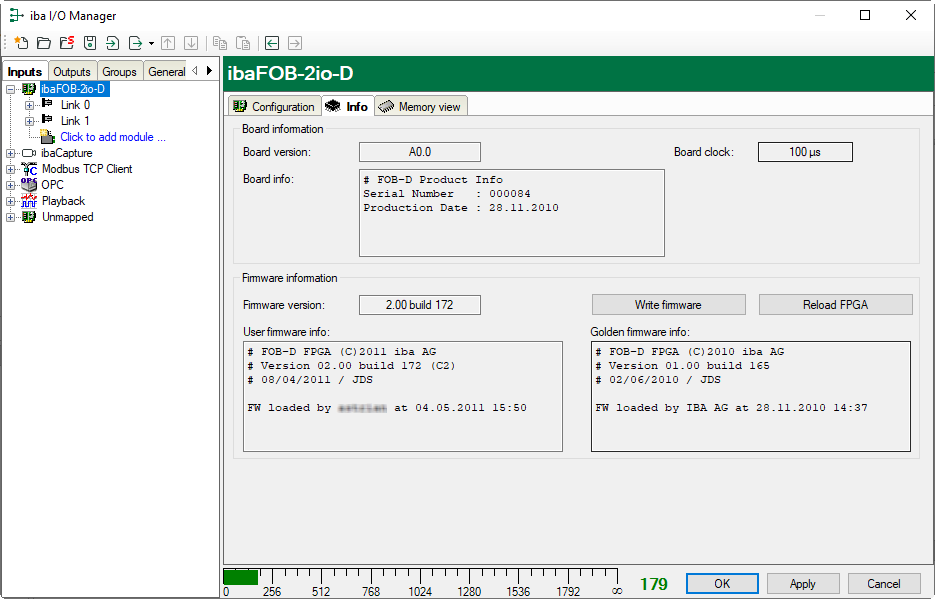

On the Info tab you can see information about the card and the loaded firmware. Functions for service and support, such as reloading the FPGA and updating the firmware are available on this tab.

Note
	A firmware update should only be performed after consulting the iba support.

Write firmware

1. Click on the <Write firmware> button.

   The Load loader dialog opens.

2. Enter the path of the firmware directory under Firmware path or click <Browse> to select the path.







   The firmware files in the directory are listed in a table. The file name, the associated card and the firmware version are specified. The files can contain the user firmware or the factory “Golden” firmware or both. The "Golden" firmware is only loaded during production.

3. Select the required firmware.

4. To load the firmware onto the card, click on <Write firmware>.
