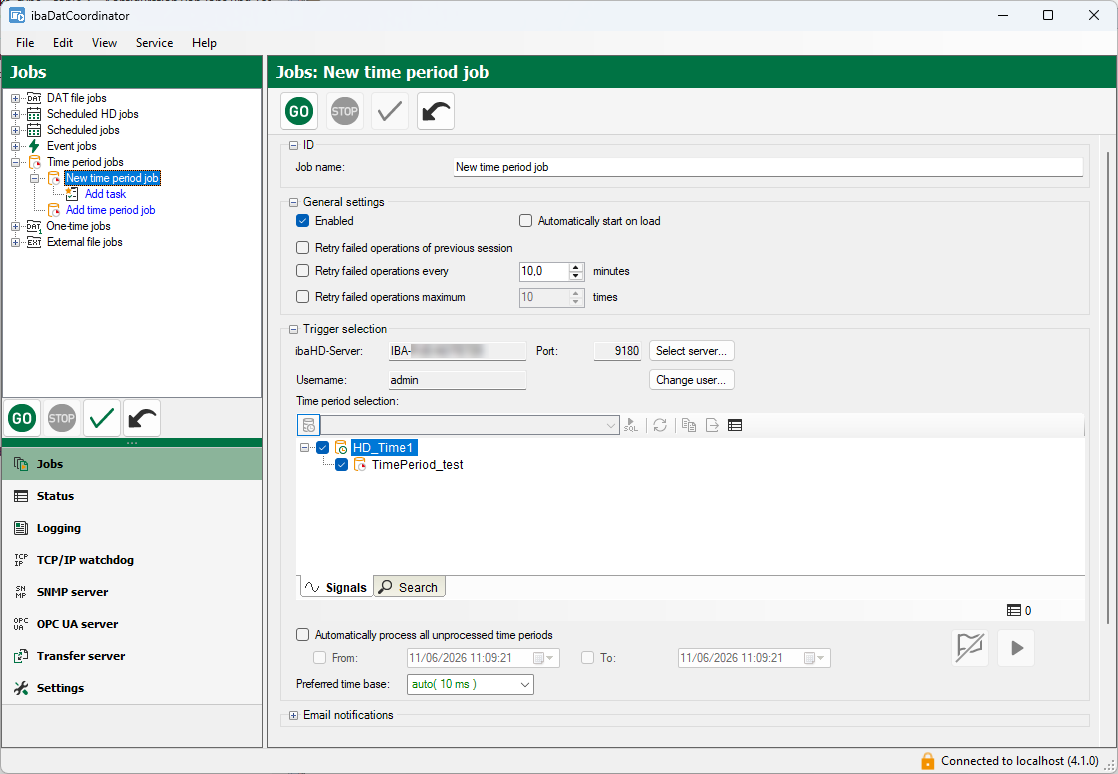

For time period jobs, configure the connection to the ibaHD-Server, the time period store, and the query period in addition to the default settings.

For information on the default settings, see Configuring a job.

General settings

Enabled

The job will only be executed if this option is enabled.

Automatically start on load

When enabled, the job starts automatically as soon as the XML configuration file has been loaded. This is the case if you load the configuration manually via the File – Open menu, or if the ibaDatCoordinator client or service starts.

Retry failed operations of previous session

Enable this option if you want to ensure that operations that could not be completed in the previous session are repeated.

Retry failed operations every ... minutes

Set the time after which failed tasks marked as failed with time periods will be performed again. ibaDatCoordinator only performs these tasks.

Retry failed operations maximum ... times

Here you can define how many times the attempt will be made to reprocess time periods. If the maximum number of attempts has been performed without success, the corresponding task is added to a file list of "constantly failed tasks".

If you disable this option, ibaDatCoordinator will not stop trying to process tasks marked as failed.
Trigger selection

In the Trigger selection area, make the settings for the connection to the ibaHD-Server and time period store.

To open the server selection dialog, click the <Select server...> button. Select the desired ibaHD-Server from the table and close the dialog by clicking <OK>.

If user management is enabled for the selected ibaHD-Server, you must then enter a user name and the correct password.

For more information on the ibaHD-Server connection and user management, see Establishing ibaHD-Server connection.

Under Time period selection, select the desired time periods to be processed. For more information on how to use the time period table and its filter options, see Properties of the time period table.

Automatically process all unprocessed time periods

By default, ibaDatCoordinator automatically processes new period periods finished by ibaPDA. If this option is activated, existing time periods (starting from the configured time) can also be processed.

If the “To” option is not set, ibaDatCoordinator will continue to process the new time periods as usual. After clicking <GO>, the corresponding time periods are processed and the option is reset to be inactive.

Preferred time base

A time period period is usually processed with ibaAnalyzer. Therefore, the preferred time base used to query time-based data must be set with ibaAnalyzer.

Control elements

Removes the markers from the time periods that they have already been processed. To use it, it is necessary to set the Process existing time periods option and set the time periods accordingly. Only time periods within the configured time range are reset. After the marker has been removed, the time periods can be processed again.


While the job is running, individual time periods can be selected from the table for immediate processing. The time periods are always processed immediately, regardless of whether they have already been marked as processed. If the flag was not already set, it will be set.
