Objects tab

Objects

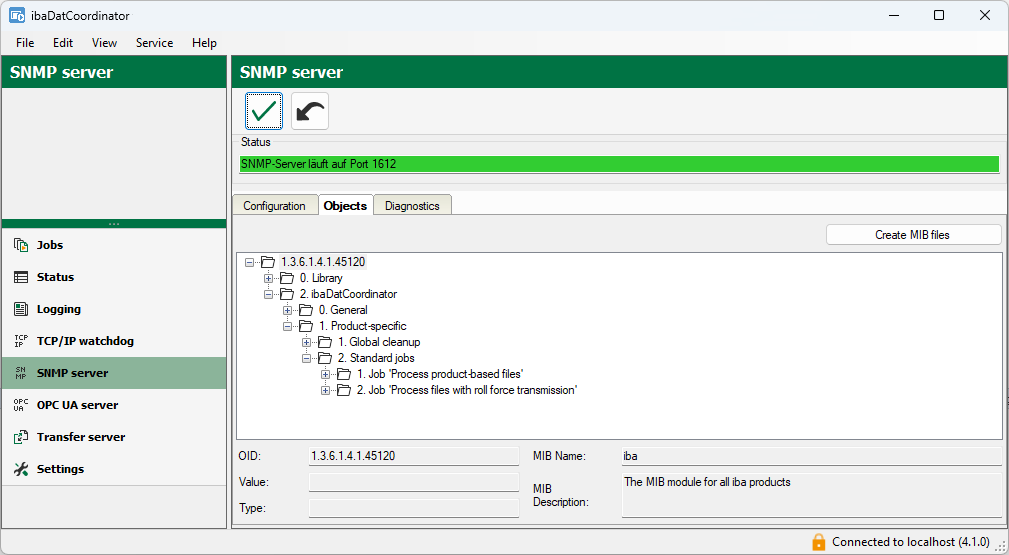

The tree structure displays the objects that are available in the SNMP server. The tree structure shows the OID tree (object identification tree). The objects are divided into a number of groups:

• Objects of the SNMP library

• Objects for the general properties of ibaDatCoordinator, such as the version and dongle information

• Objects for global cleanup settings

• Objects for standard tasks

• Objects for scheduled tasks

• Objects for one time tasks

Button <Generate MIB files>

With this button you can start the generation of the MIB (management information base) files.

After clicking the button, select a folder in which the files will be saved. Two MIB files are always created:

• IBA-GENERAL-MIB.txt: This file contains the objects which all iba products have in common.

• IBA-PRODUCT-IBADATCOORDINATOR-MIB.txt: This file contains the objects which are specific to ibaDatCoordinator.

The object currently selected is displayed under the OID tree:

• Full OID

• MIB name

• MIB description

• Current value

• Data type
