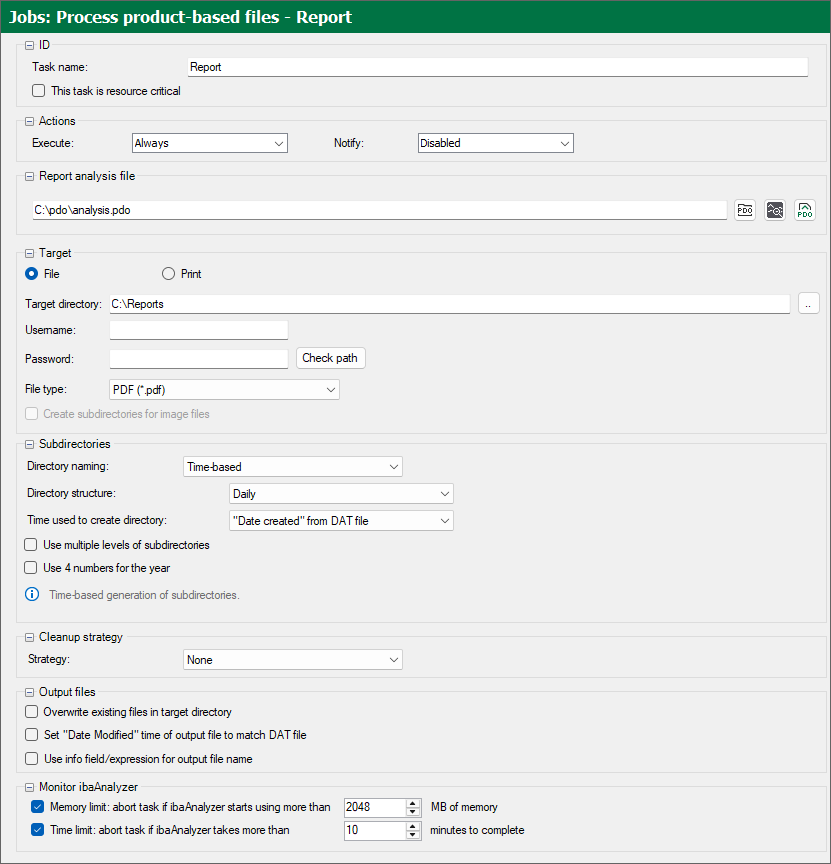

This task allows you to create reports automatically. You can print the report using the default printer or save it as a file in one of the formats listed below. The report is generated using an analysis file (PDO file) which was created with ibaAnalyzer.
The task-specific settings are explained below. For all other settings, see General task settings.
Report analysis file
See Task analysis file.
Target
Select here whether the report should be output to the default printer (Print option) or written to a File.
The following formats are available for file output:
|
File type and extension |
Remark |
|---|---|
|
Bitmap (*.bmp) |
- |
|
CSV (*.csv) |
Delimiter-seperated text |
|
Enhanced Metafile (*.emf) |
- |
|
Web page (*.htm, *.html) |
HTML v3.2-compatible no overlapping objects allowed Turned RTF not supported |
|
JPEG (*.jpg, *.jpeg) |
- |
|
Single file web page (*.mht, *.mhtml) |
HTML v3.2-compatible no overlapping objects allowed Turned RTF not supported |
|
PDF (*.pdf) |
- |
|
Rich Text (*.rtf) |
Turned RTF and images are not supported |
|
TIFF (*.tif, *.tiff) |
- |
|
Text (*.txt) |
Table export only |
|
Microsoft Excel (*.xls) |
Excel version-independent (native export) RTF text embedded as picture Overlapping objects are not fully supported |
|
XML (*.xml) |
- |
Output files – Date of the output file
If you activate the option Set “Date Modified” time of output file to match DAT file, the (modification) date of the original DAT file is adopted as the date of the output file.
Note |
|
|---|---|
 |
If ibaDatCoordinator is installed as a service, the software runs under the system account. If you want to print something, the default printer should be available under the local system account. If printing is to be done on a network printer, the ibaDatCoordinator service may need to be run under a suitable domain user who has access permissions to the network printer. |
Other documentation |
|
|---|---|
 |
Information on creating PDO files and defining reports can be found in the ibaAnalyzer documentation. |
