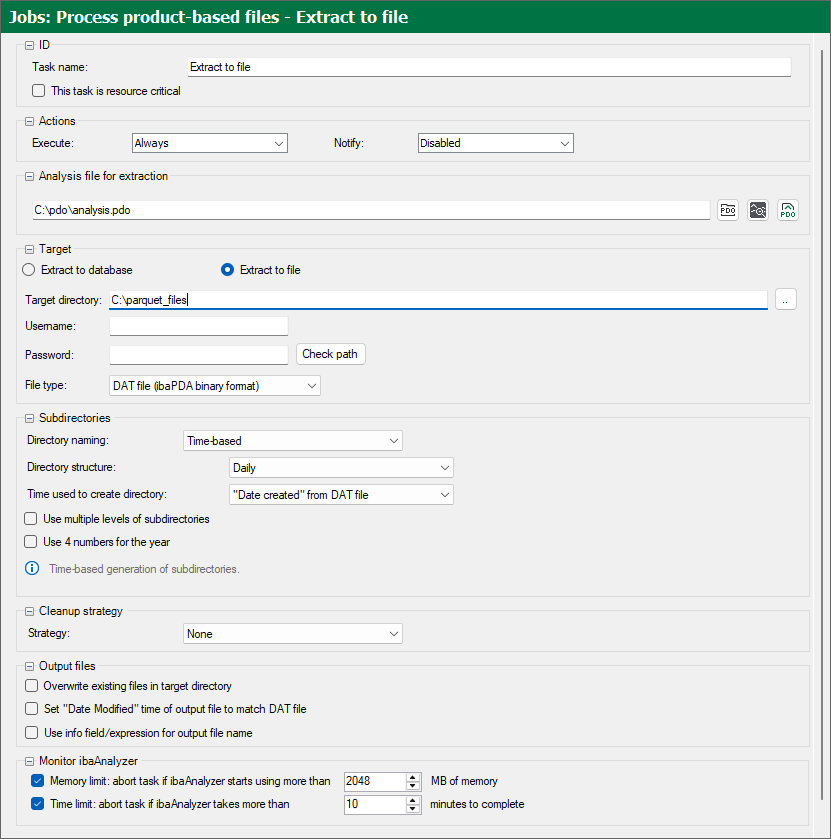

The extract to file task allows you to extract data from a DAT file using an analysis file and store it in another file. You can create the analysis file for this in ibaAnalyzer. To use the task type, you need a corresponding license ibaDatCoordinator-File-Extract, see Licenses.
Other documentation |
|
|---|---|
 |
Further information on data extraction with ibaAnalyzer can be found in the ibaAnalyzer documentation. |
The task-specific settings are explained below. For all other settings, see General task settings.
Analysis file for extraction
See Task analysis file.
Target
Extract to database/Extract to file
The “Extract to file” option is selected by default.
File type
Select here the required type for the output file.
|
File type |
Remark |
|---|---|
|
DAT file (ibaPDA binary format) |
iba DAT file (*.dat) |
|
TXT files |
ASCII file, tab-separated format |
|
COMTRADE |
ASCII-file specifically for measurement purposes in energy technology (*.dat, *.cfg) |
|
TDMS |
National Instruments file format (*.tdms, *.tdms_index) |
|
Apache Parquet (*.parquet) |
Apache Parquet format (*.parquet) |
|
MATLAB |
MATLAB format (*.mat) |
|
CSV file |
CSV format (*.csv) |
