You can use the Value display tile type to visualize several individual values on a tile as cells on the dashboard. It is also possible to display values from info fields. For each selected column, a separate cell is created, the cell size and cell position can be individually adjusted and changed here. The size of the cell content shown depends on the height of the cell and whether the cell displays further statistical information.

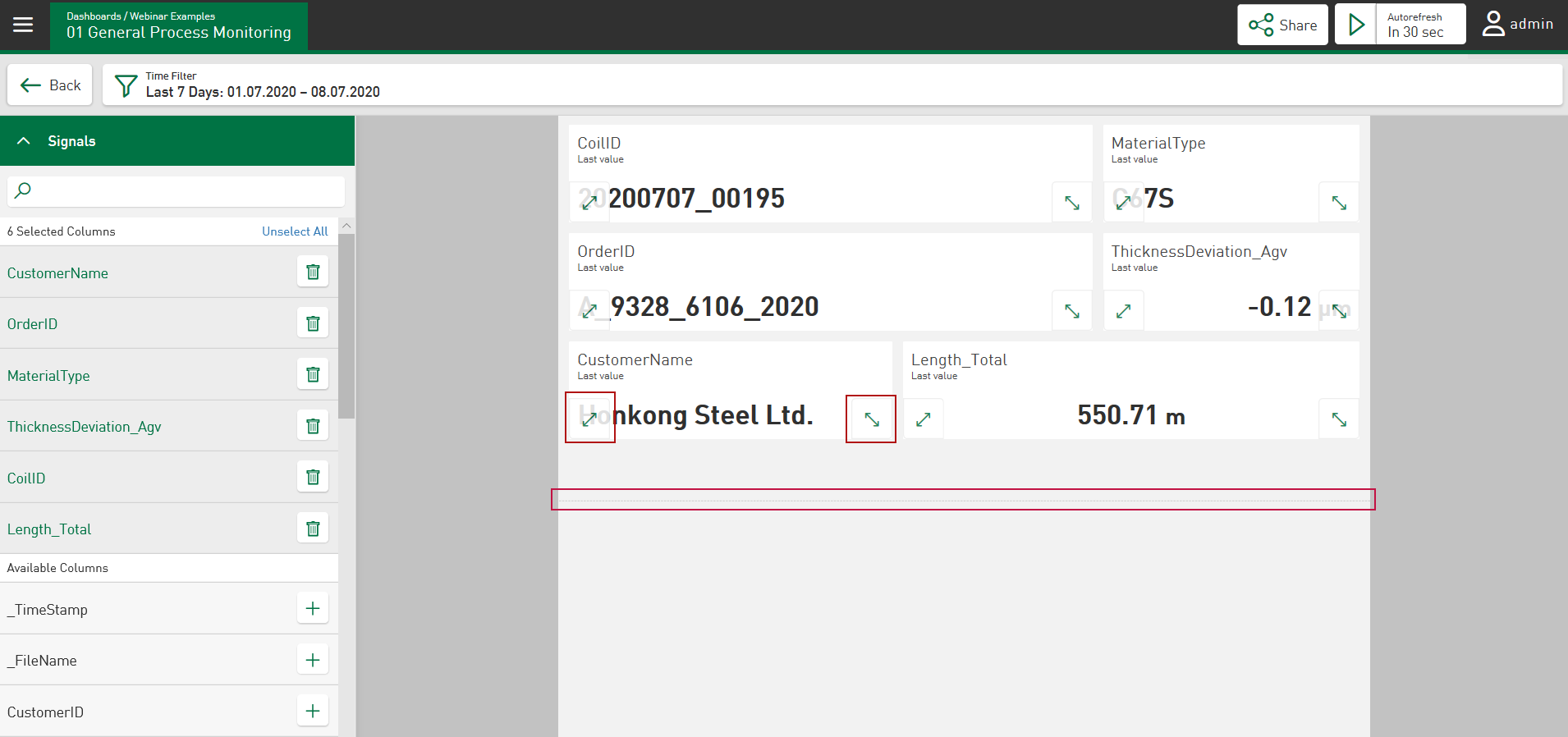

If you have selected columns for display, they automatically appear in the visible area of the tile. The width of the area in which the cell can be positioned corresponds to the width of the value display on the dashboard. The current tile height is marked by the dotted line in the editing area, but is not limited.

All cells located below this dotted line are not shown on the dashboard and can be accessed via a tile-related scrollbar. The height of the visible area can be changed by changing the height on the dashboard. Therefore, increase the width and height of your tile on the dashboard if you have configured cells that are not completely visible.

The size and position of a cell can be changed in the same way as any tile is changed on the dashboard, i.e. by tapping on the left and right double arrows at the bottom. The font size of the values increases or decreases with the size of the cell. If the cell width is insufficient for completely displaying the cell contents, ellipses will indicate that the content is not fully displayed.

The width and position of the cell remains the same if you go back to the dashboard. When designing your layout, you can use the full width of the design area.

Cell definitions

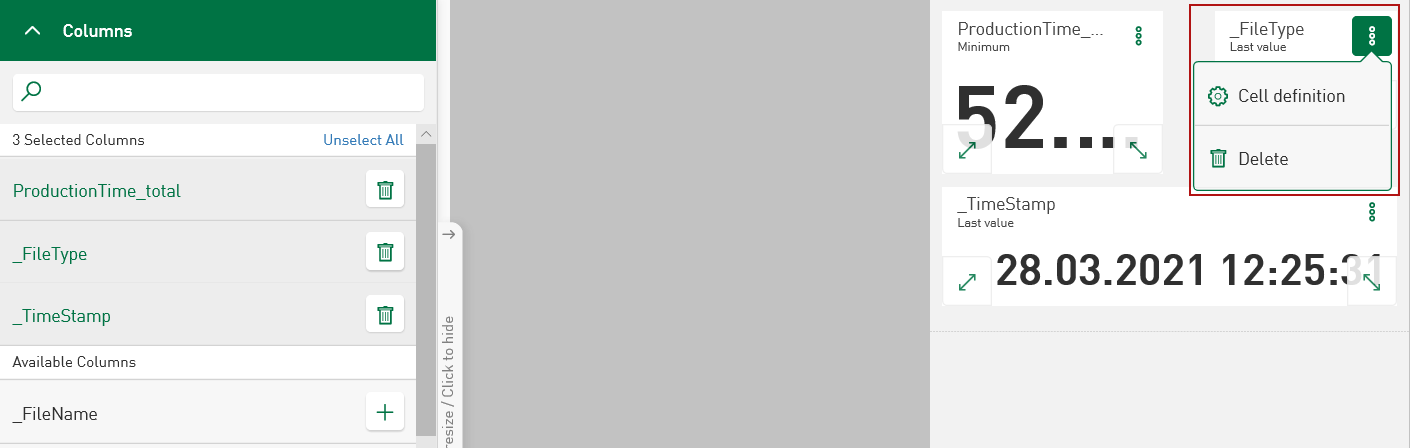

For the selected columns, specific options are available via a context menu directly in the respective cell.

In the Aggregator field for numerical values, it is possible to display the selected column values via a drop-down menu instead of the last value (default) of the calculated average, minimum, maximum or total value (sum).

The position of the value shown in the respective cell (left, center or right) can be determined in the Alignment field.

For numerical values, you can define the number of Decimal places displayed.

In the Statistic aggregators field, you can select statistical information that should also be displayed in the cell.

Options

Display table style

The selected columns are listed in tabular form.
