The table shows selected columns from a database table or time period table. You can select and arrange the columns as you wish. You can also sort and filter the individual columns.
If the characteristic value in the table is calculated from a DAT file, you can download the corresponding DAT file and open it with ibaAnalyzer. A drill down on the measurement signals is thus possible for a detailed analysis. In addition, you can open an export menu to download CSV files. Depending on the table type and the settings in the options, it is also possible to download PDF reports or HDQ files.

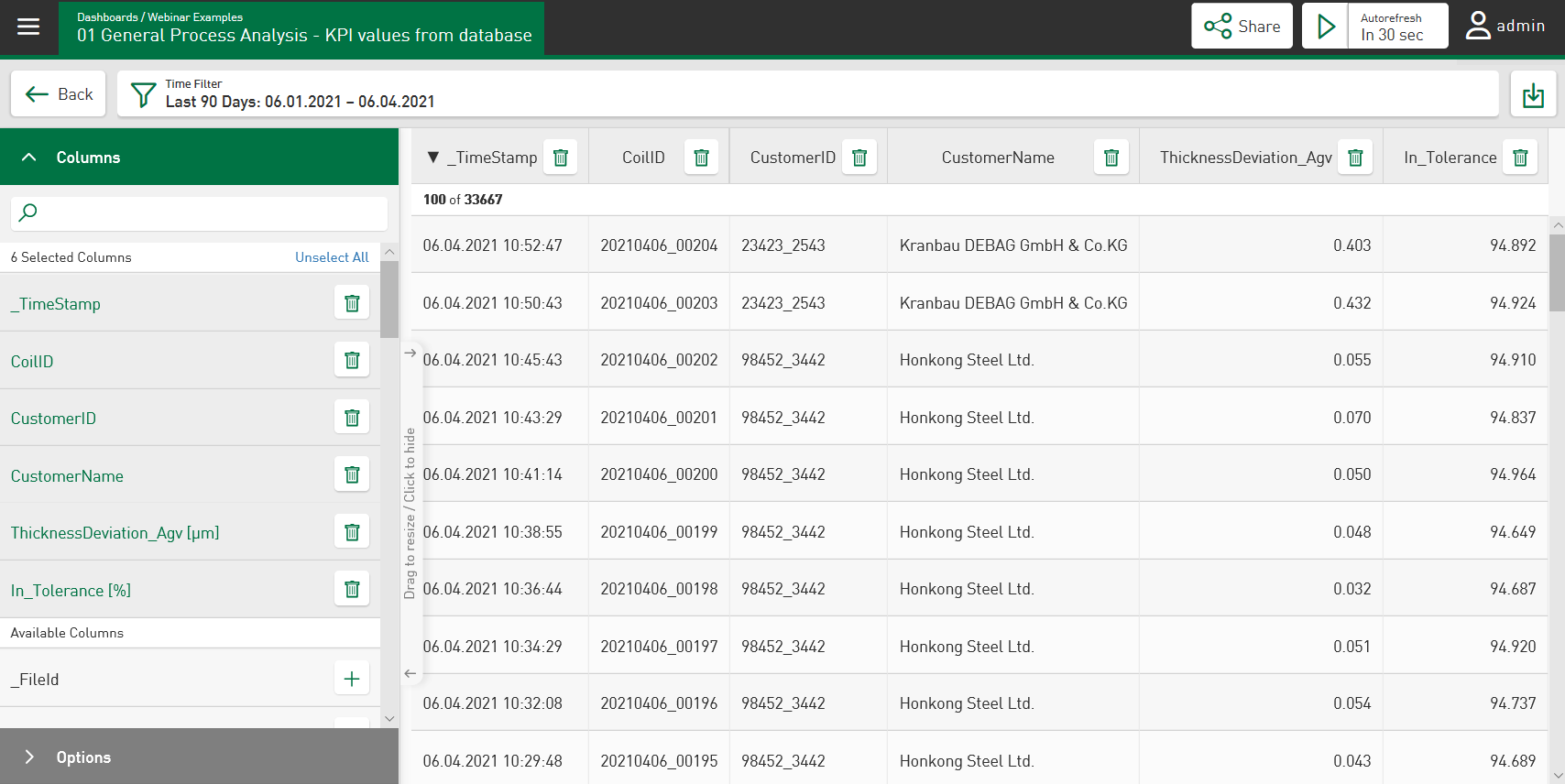

Columns
From Available
columns, select the columns that are to be shown in the table. The column is inserted in
the display all the way to the right by default. Tapping on the
button the column header removes the column from the display.

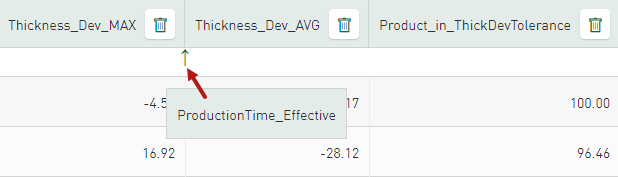

You can move a column by tapping in the column header and inserting the column in the desired position using drag & drop.

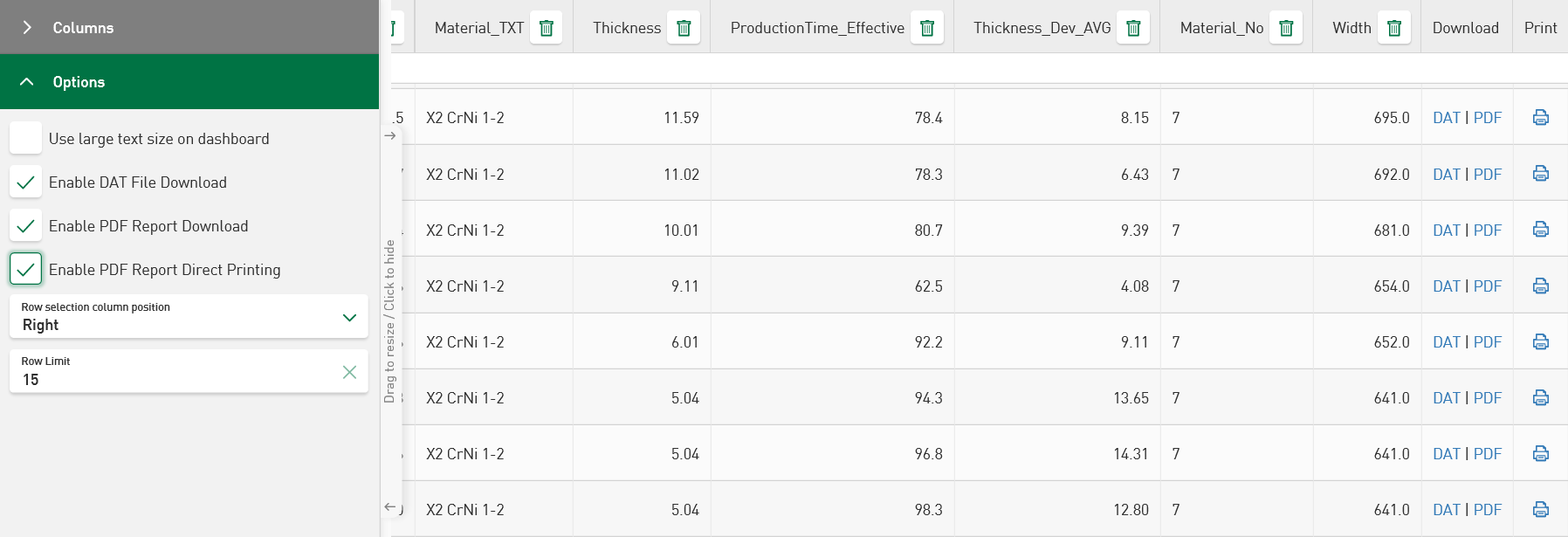

Options
Use large text size on dashboard
Here you can increase the text size of the values displayed in the table. This text size setting is also transferred to the dashboard view.
Enable DAT File Download
If enabled, you can download and save the DAT file on which the characteristic value is based or open it with ibaAnalyzer. An additional Download column appears.
See also Downloading selected DAT files and PDF reports.
Enable PDF Report Download
If enabled, PDF reports on measurement series can be downloaded via the tile. The prerequisite is that the report is available as a PDF file for this measurement series.
See also Downloading selected DAT files and PDF reports.
Enable PDF Report Direct Printing
If enabled, a printer symbol appears after each row. Tapping on the icon starts the direct printing of the report. In addition, a printer symbol appears in the tile header, which enables direct printing of several reports. To do this, you must select the reports in the dashboard view using the respective checkbox.
Enable HDQ File Download
If enabled, time periods can be downloaded as HDQ files. An additional Download column appears and the Download HDQ as ZIP option in the download menu of the tile is active.
See also Downloading time period data as HDQ file.
Row selection column position
The checkboxes for selecting individual table rows are displayed either as the first or last column in the tile.
Row Limit
To limit the number of rows displayed, enter the desired number here. The preference is 100 lines.
Note |
|
|---|---|
 |
The data base contains a reference to the DAT file, not the file itself. It is only possible to download the DAT file if the file is in its original storage location. The PDF report must have the same name and be in the same folder as the DAT file so that it is possible to access it. The installation of the ibaDatCoordinator software enables the automatic creation of a report. More information can be found in the documentation of ibaDatCoordinator. |
For more information on downloads, see Export data from tables.
