A Pie chart is suitable for showing the distribution of a whole into parts (segments) corresponding to the frequency of a category or characteristic.

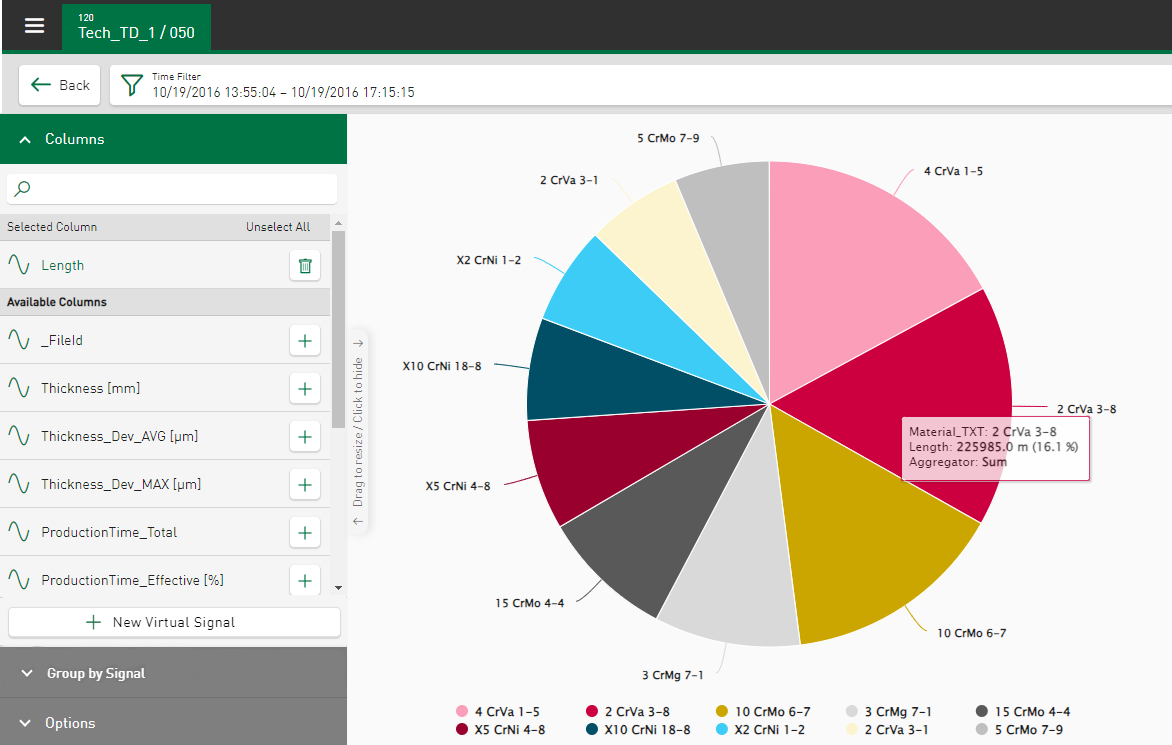

The following example shows the distribution of the produced product length (in total) related to the different materials used. The product length is selected under Columns and the material designation is selected as the Category. The pie chart shows the product lengths added up per material group within the considered time range in descending order.

Columns

Select the measured value or the value series whose distribution is to be displayed, e.g. the length of the produced material.
Group by Signal

Select the category to which the distribution refers, e.g. material thickness.
Options

Aggregation

Aggregation function to be applied to the value series selected under Columns

  • Count: Quantity of values of the selected value series

  • Sum: Sum of values of the selected value series

  • Average: Average of values of the selected value series

  • Minimum: Minimum value of the selected value series

  • Maximum: Maximum value of the selected value series

  • Last value: Parameter display of the last acquired value

  • StdDev: Standard deviation of the selected value series

  • Median: Median of the selected value series

Number of categories

Define how many categories should be displayed here

Sorted by

The following sort options are supported for displaying the respective aggregation function:

  • Category asc: sort alphanumerically by category in ascending order

  • Category desc: sort alphanumerically by category in descending order

  • Max. value: sort visualized categories by maximum value in descending order

  • Min. value: sort visualized categories by maximum value in ascending order

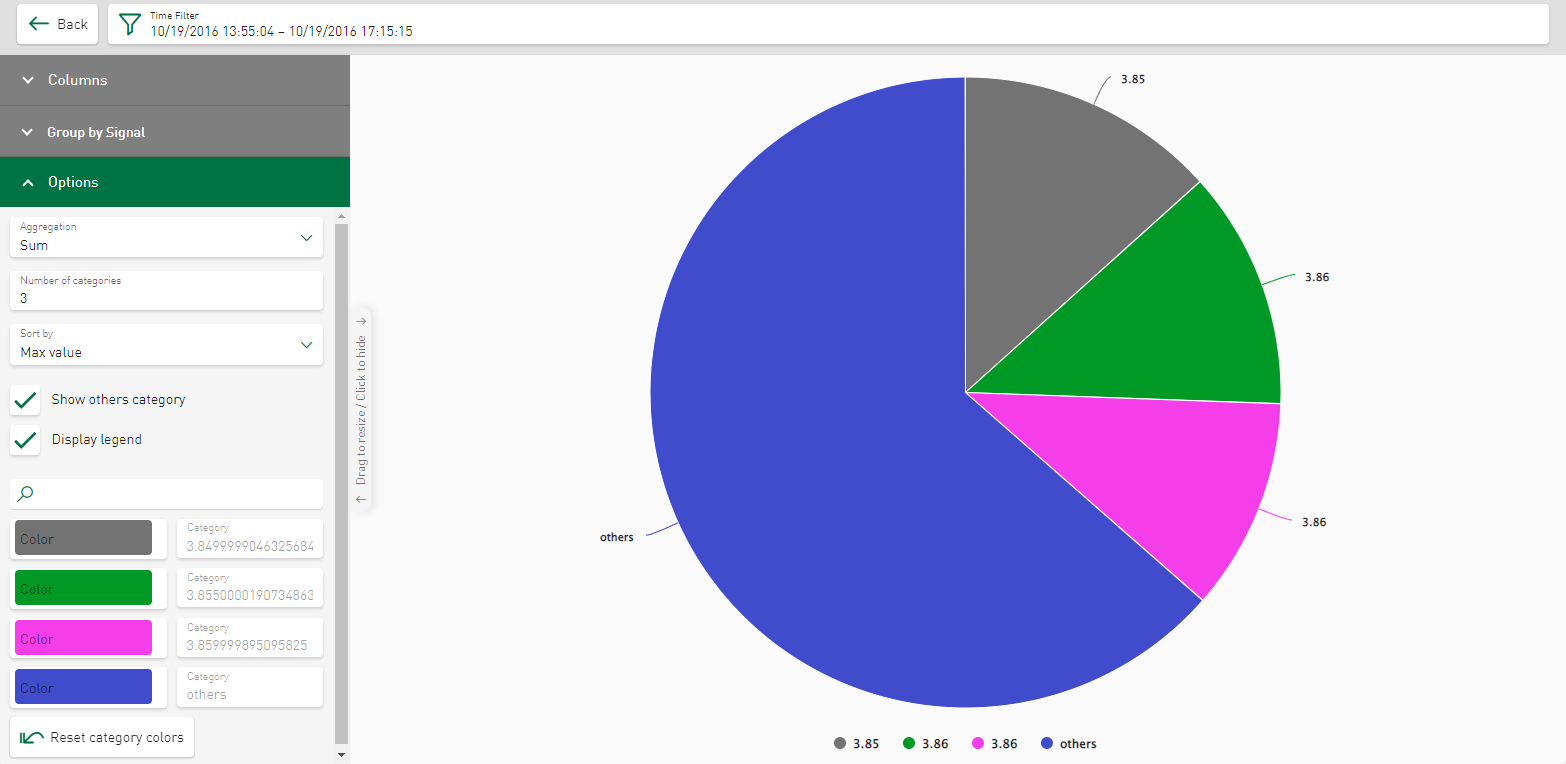

Show other category

All categories that have not been recorded under Number of categories are summarized under Other.

Display legend

Displays the names of the segments as a legend

Colors

You can change the colors of the displayed segments via the respective color field. Use the <Reset category colors> button to restore the original colors. See also Color selection in tiles.
