Both the API Key and the Certificate thumbprint are already provided in the ibaHD Manager user interface and transferred directly to read-only fields. Enter the further connection parameters directly in this view of ibaDaVIS.

Name

Hist name or IP of ibaHD-Server

Server

Name of the active ibaHD-Server connection

ibaHD API Port

Communication port of ibaHD-API (standard value 9003)

User

User name for ibaD-Server with access to HD data stores

API Key

Read-only field displaying the user-dependent key for higher security levels. This key is only used if the user management is disabled on ibaHD-Server side.

Certificate thumbprint

Read-only field displaying the thumbprint of the currently applied certificate.

<Remove>

Deletes the currently used certificate from the connection parameters of the datasource.

Select certificate

Selection field for the certificate file.

<Test>

Once all of the required information has been entered, you can check here whether your connection information is correct. After tapping on the button, the list of the HD stores is requested. The connection test is successful if the list of available stores contains at least one entry.

Other documentation
	The required ibaHD API connection settings can be found in the ibaHD Manager user interface in the ibaHD API tab.

ibaHD Manager Quick Connect

See ibaHD API Quick Connect.

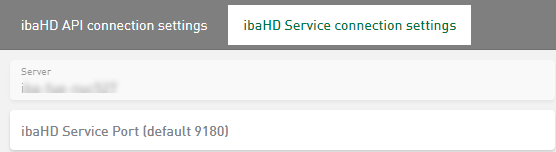

ibaHD Service connection settings

The connection settings of the ibaHD service for further analysis with ibaAnalyzer are displayed here. Changes can be entered directly in the input fields and adopted for the connection setup.
