You can display signals from the last DAT file separately in the line chart tile type if you use the Stacked view or Envelope view option for visualization.
-
Activate the option Signals of the last file separately.
The trend line for signals from the last DAT file is displayed wider than the trend lines for signals from previous DAT files.
Example

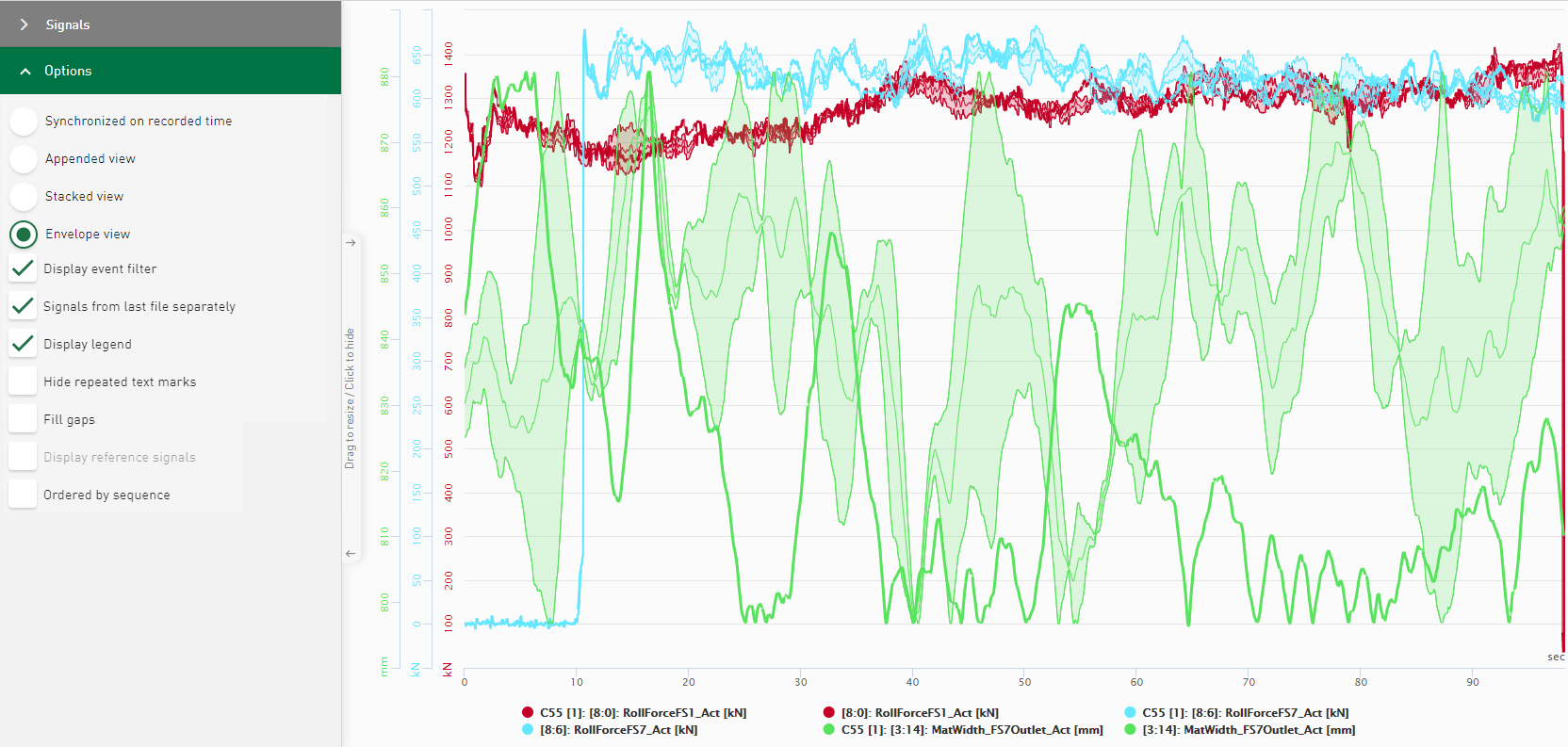

In the example, the DAT file filter is set in an envelope view so that signals from the last 3 files are visualized. The signals from two previously calculated DAT files are displayed unchanged, but the signals from the last DAT file determined are clearly highlighted.
