To add a time-based HD store to a stored ibaHD-Server connection, proceed as follows.

1. In Datasource Management, tap <Add> – <Add Time-based HD Store>.

2. In the Select time-based HD store field, select one of the displayed HD stores as the datasource.

3. Optionally, change the default name based on the currently selected HD store name.

4. To complete the setup of the time-based HD store as a datasource, tap <Save>.

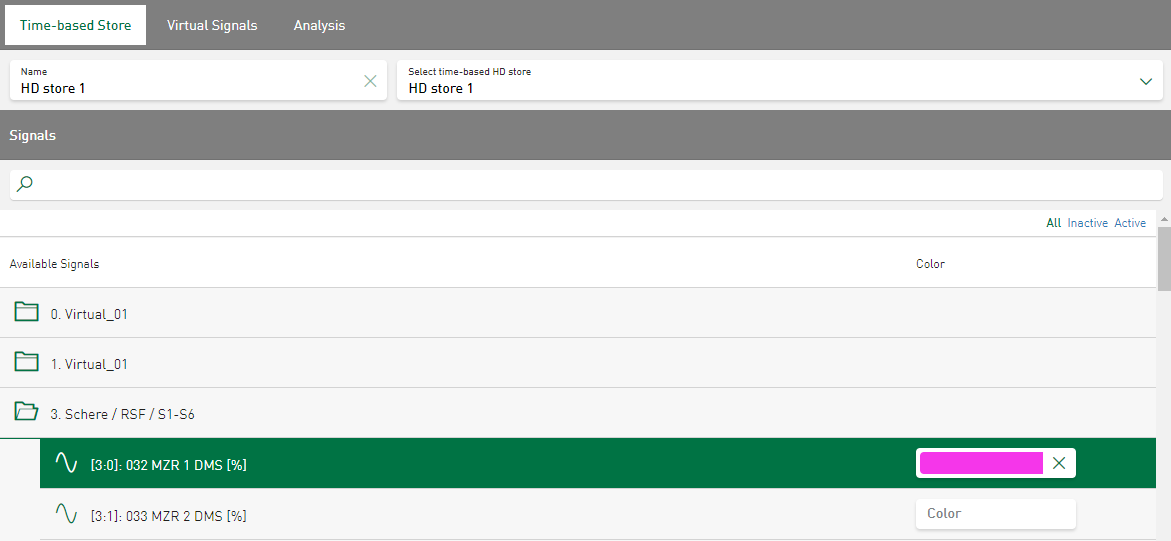

   Signals displays the signal tree of the selected HD store. Use the color field to assign a certain color to the respective signal.









5. Select the desired display mode for the HD-related signal tree:

   • <All> to display all signals

   • <Inactive> to display the currently inactive signals

   • <Active> to display the active signals

   The signal tree is refreshed immediately after selecting the type of display.

6. In the Virtual Signals tab, you can also add and edit virtual functions, see Configuration of virtual signals.

7. The Analysis tab lists the configured analyses. see Settings – Analysis Configuration.

8. Optionally configure Time Periods for time-based HD store, see Time-based HD store – Time periods.
