Below you will learn how to add a new tile to the dashboard.

Requirement: You have already created the data source and the dashboard.

1. To open the dashboard, tap on the dashboard name or dashboard icon.

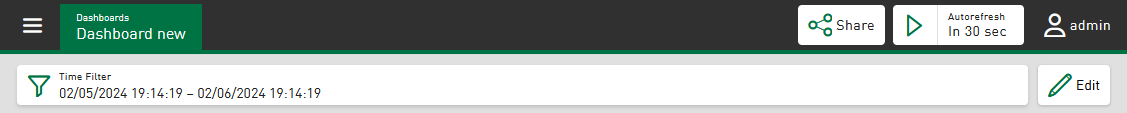

2. To switch to edit mode, tap <Edit>.

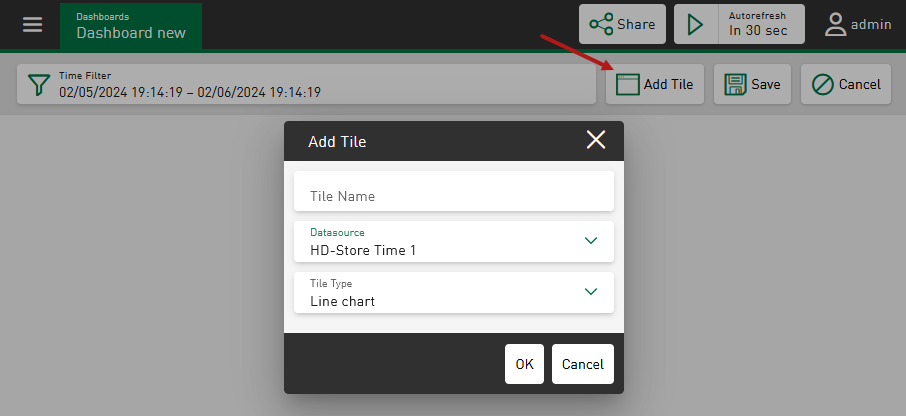

3. Tap on <Add Tile>.







4. Enter a Tile Name.

5. Select a Datasource.

   The tables defined as datasource or ibaHD-Server data are available for selection, see Datasource configuration.

6. Select the desired Tile Type from the drop-down menu.

   This selection depends on the previously selected datasource and can vary accordingly.

   For an overview of all tile types and datasources that can be displayed, see Tile types – overview.

7. Confirm the settings with <OK>.

   The tile opens in edit mode.

8. Configure the tile settings and display options.

   Which settings are possible depends on the datasource and the tile type.

9. Tap <Back> to switch to the dashboard.

10. Confirm the changes with <Save>.
