To add an event-based HD store to a stored ibaHD-Server connection, proceed as follows.

1. In Datasource Management, tap <Add> – <Add Event-based HD Store>.

2. In the Select event-based HD store field, select one of the displayed HD stores as the datasource.

3. Optionally, change the default name based on the currently selected HD store name.

4. To complete the setup of the event-based HD store as a datasource, tap <Save>.

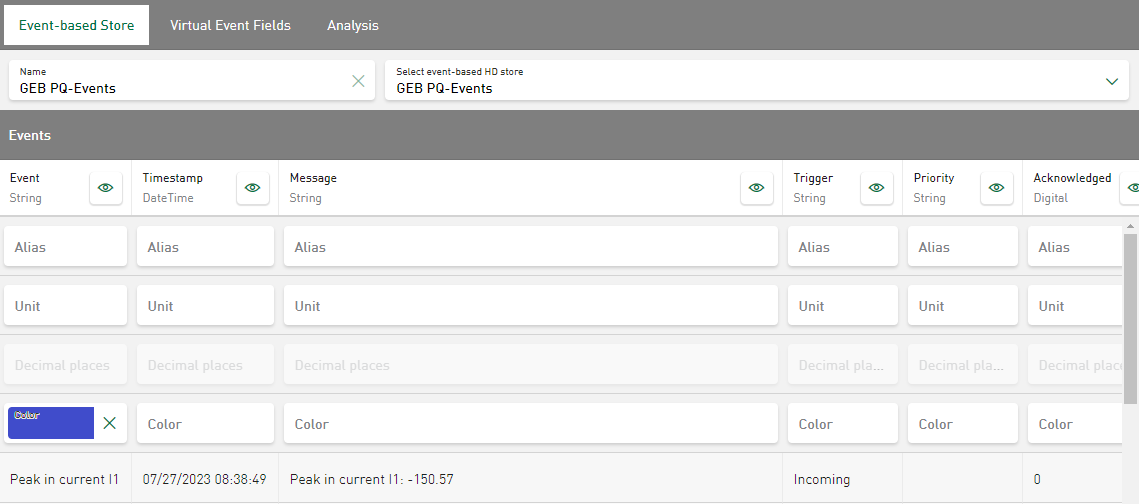

   A series of recently added events is displayed under Events. You can optionally add an Alias name, add a Unit, change the number of Decimal places for formatting the numerical values, or assign a color, see Table settings.









5. In the Virtual Signals tab, you can also add and edit virtual functions, see Configuration of virtual signals.

6. The Analysis tab lists the configured analyses. See Settings – Analysis Configuration.
